Description

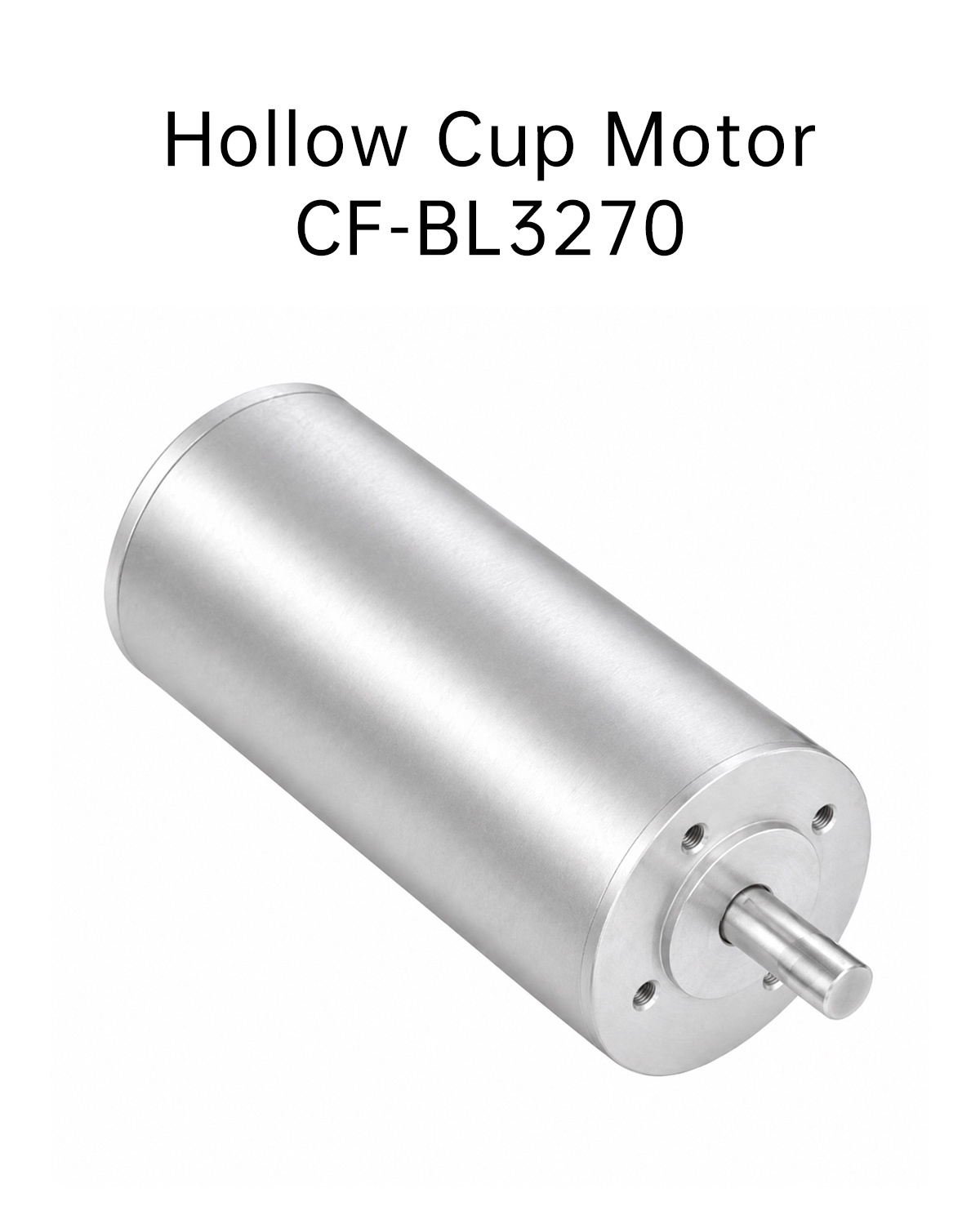

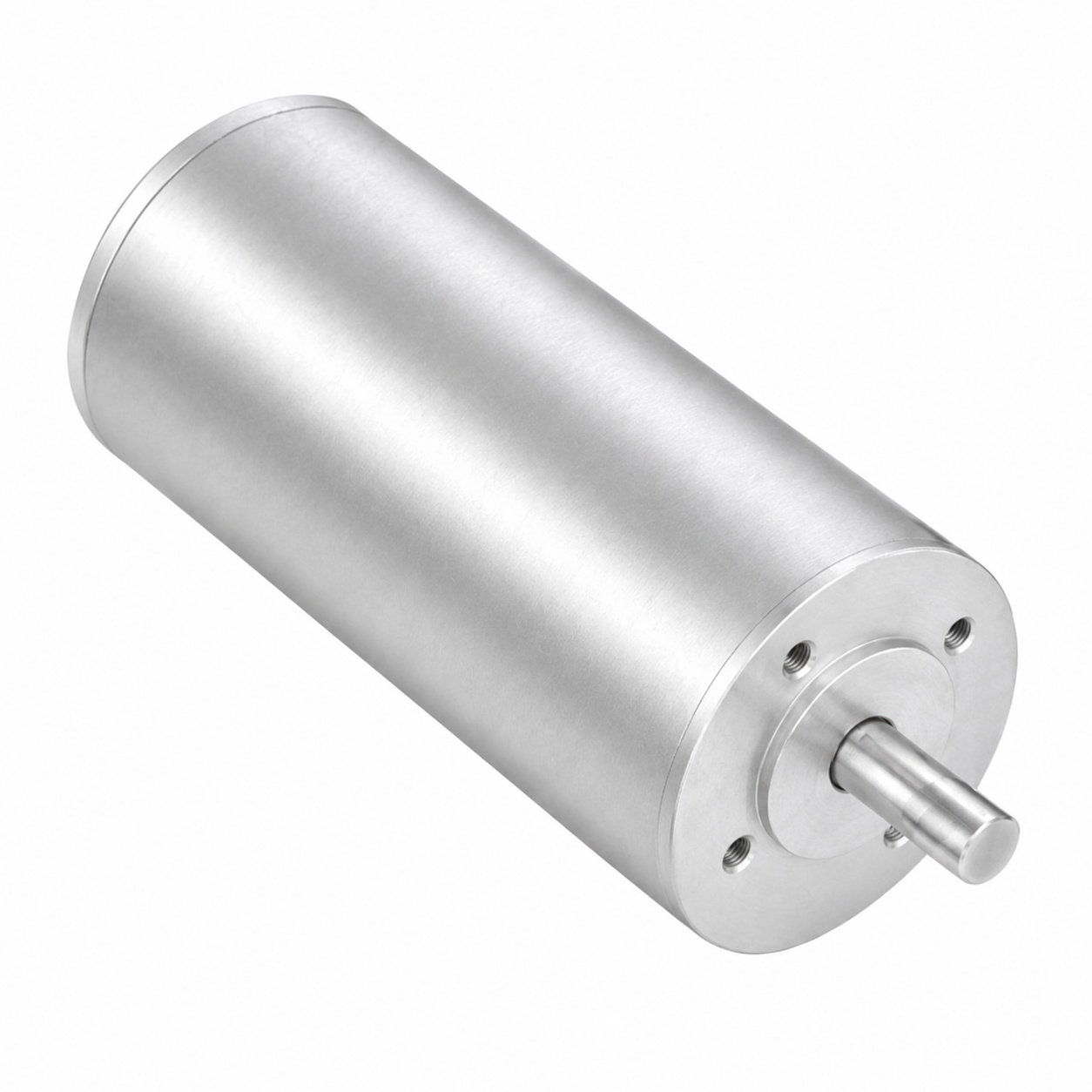

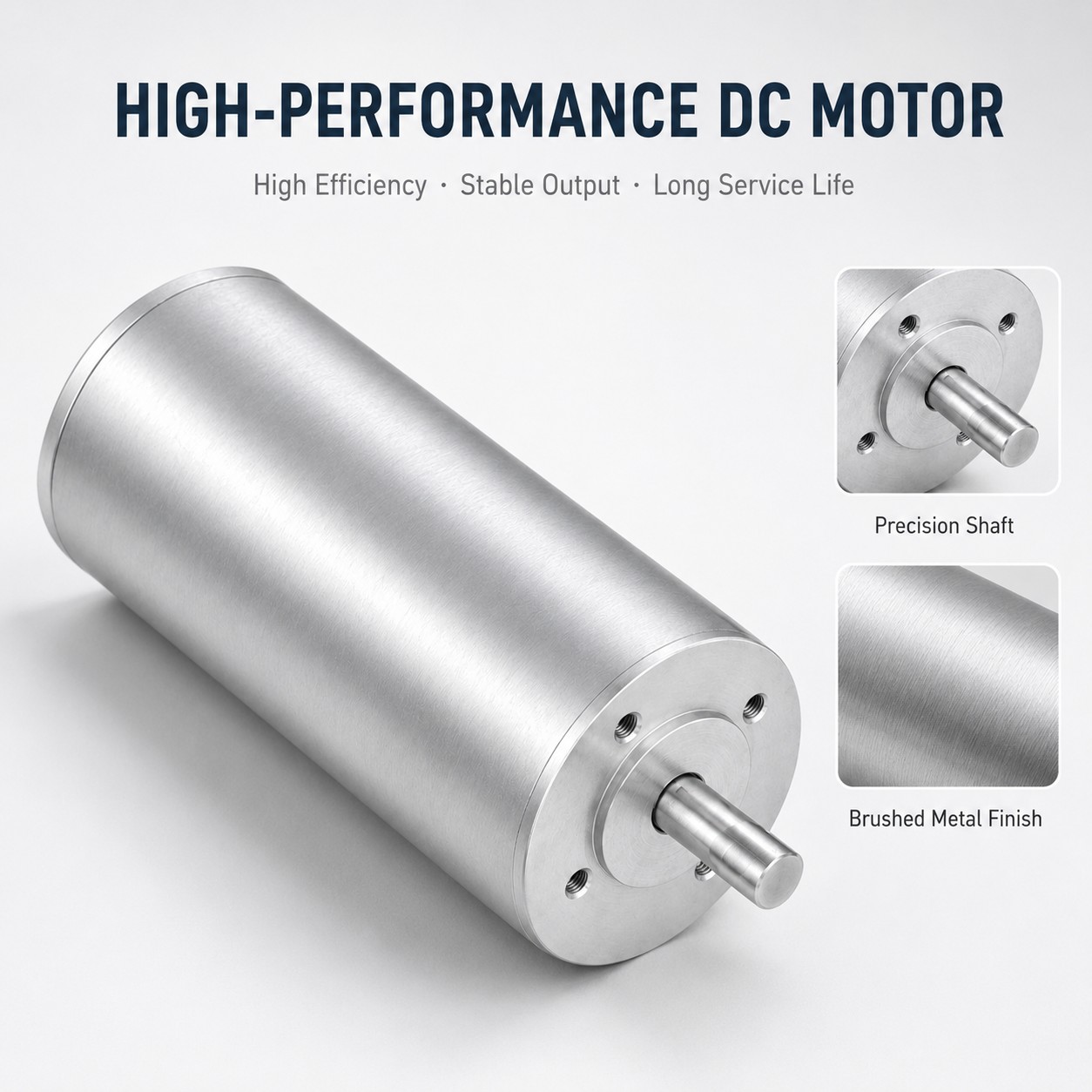

Hollow Cup Motor (CF-BL3270)

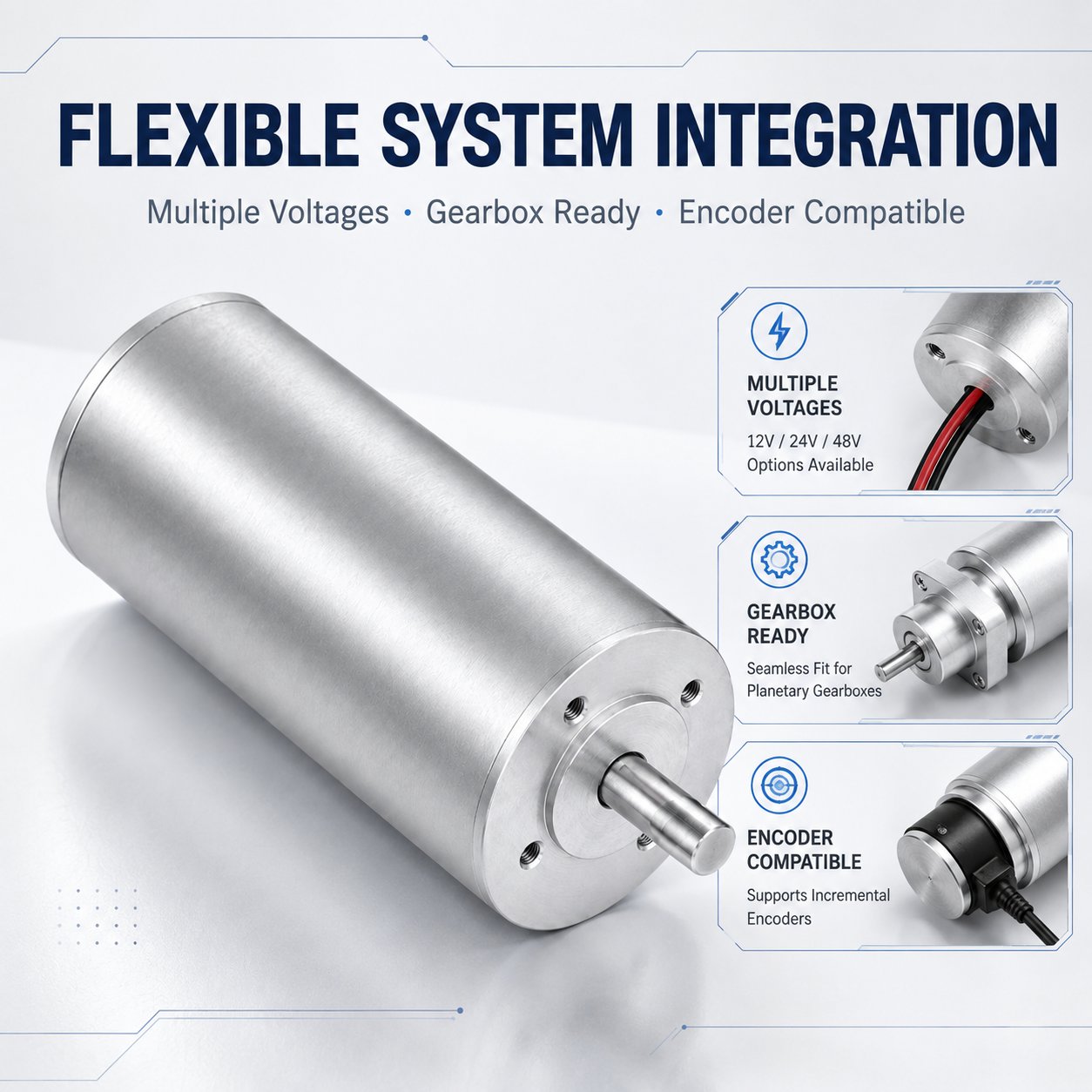

Cifu Technology manufactures a series of high-performance brushless coreless DC motors characterized by high efficiency, stable output, and long service life. These motors offer a variety of voltage and configuration options and support complementary components such as gearboxes and encoders, providing reliable power solutions for automation equipment, robotics, and intelligent control systems.
Note: Motor data is measured in a standard test environment at 25°C. Operating the motor beyond the recommended maximum continuous parameters may reduce its service life or cause damage. In high-temperature environments, the load current must be reduced to protect the motor.
Naming Convention
e.g.
CF-BL2850
Meaning:
* CF = Cifu
* BL = Brushless
* 28 = Outer diameter 28mm
* 50 = Motor length 50mm
📌 Please read here for more details on product specifications.
Additional information
| Motor thermal resistance | 7.0 K/W |
|---|---|
| Motor thermal time constant | 1163 s |
| Dynamic load: Axial | 6.0 N |
| Dynamic load: Radial (5 mm from shaft end) | 28.0 N |
| Maximum mounting force (static) | 110 N |
| Maximum mounting screw insertion depth | 4.0 mm |
| Radial play (5 mm from shaft end) | ≤0.02 mm |
| Axial play | 0 (<6.0 N) |
| Maximum coil temperature | 125°C |
| Ambient temperature | -30 to 65°C |
| Standard rear shaft diameter | 4 mm |
| Standard rear shaft length “L” | 0 / 3.7 / 5.5 mm |
