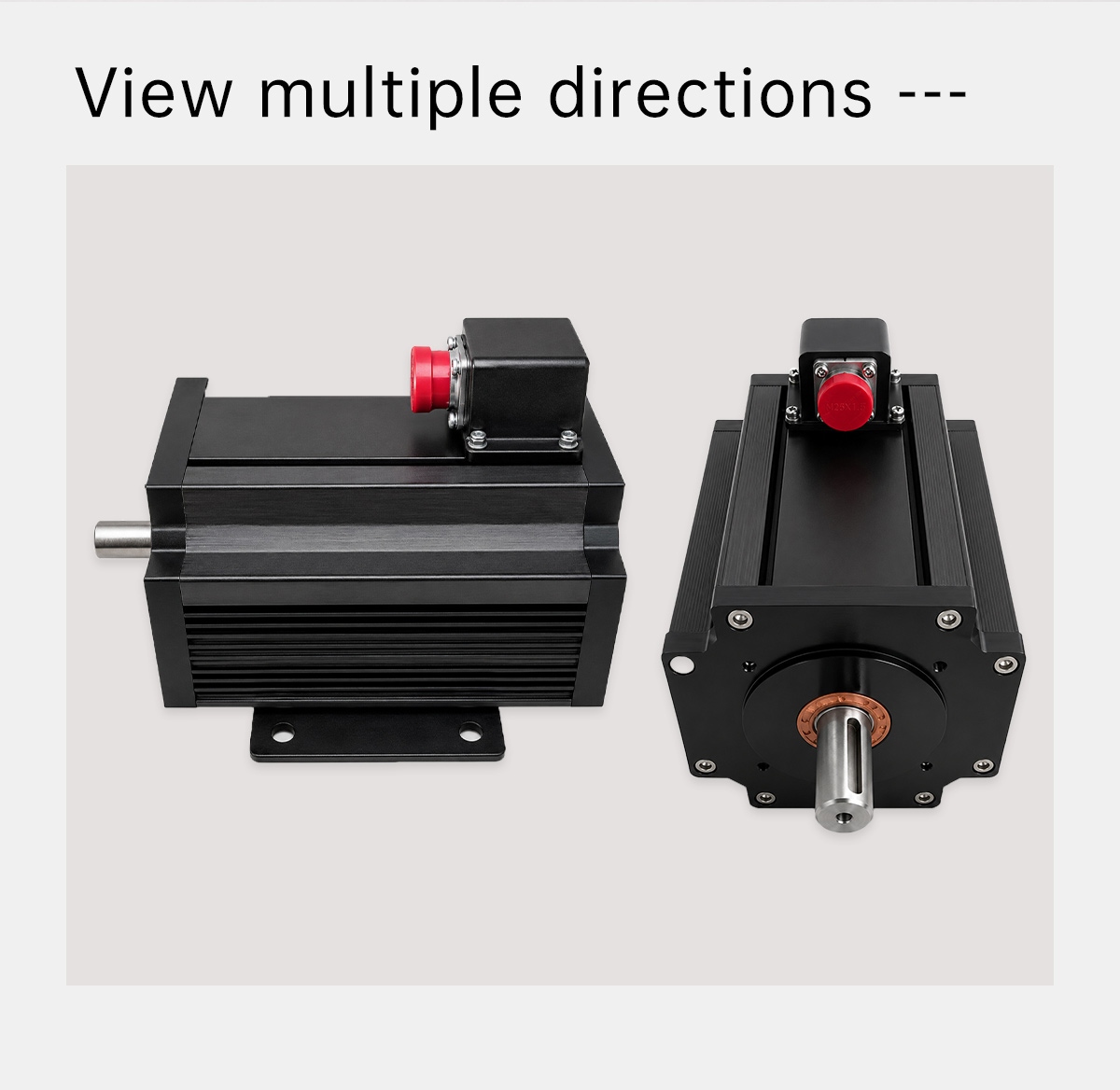

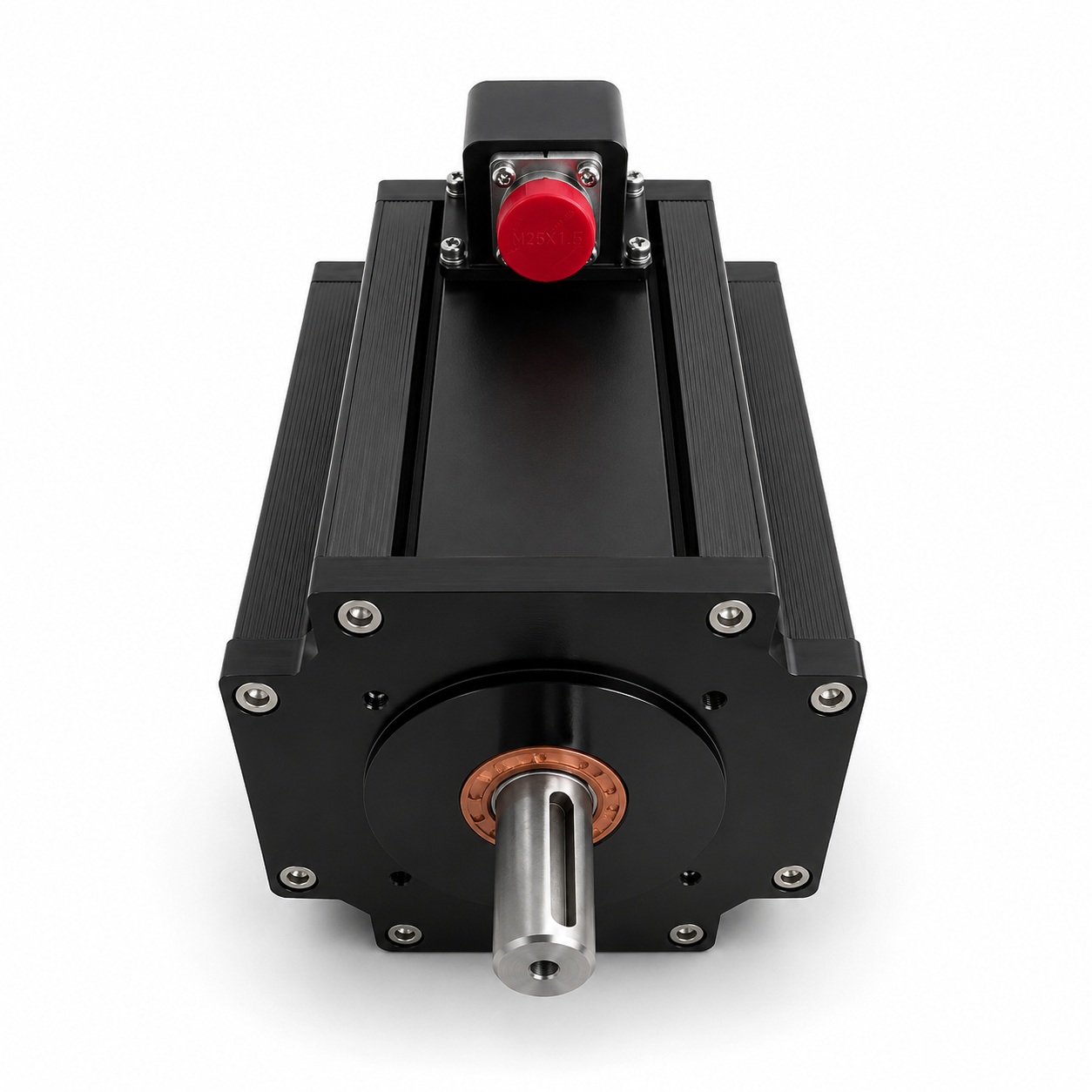

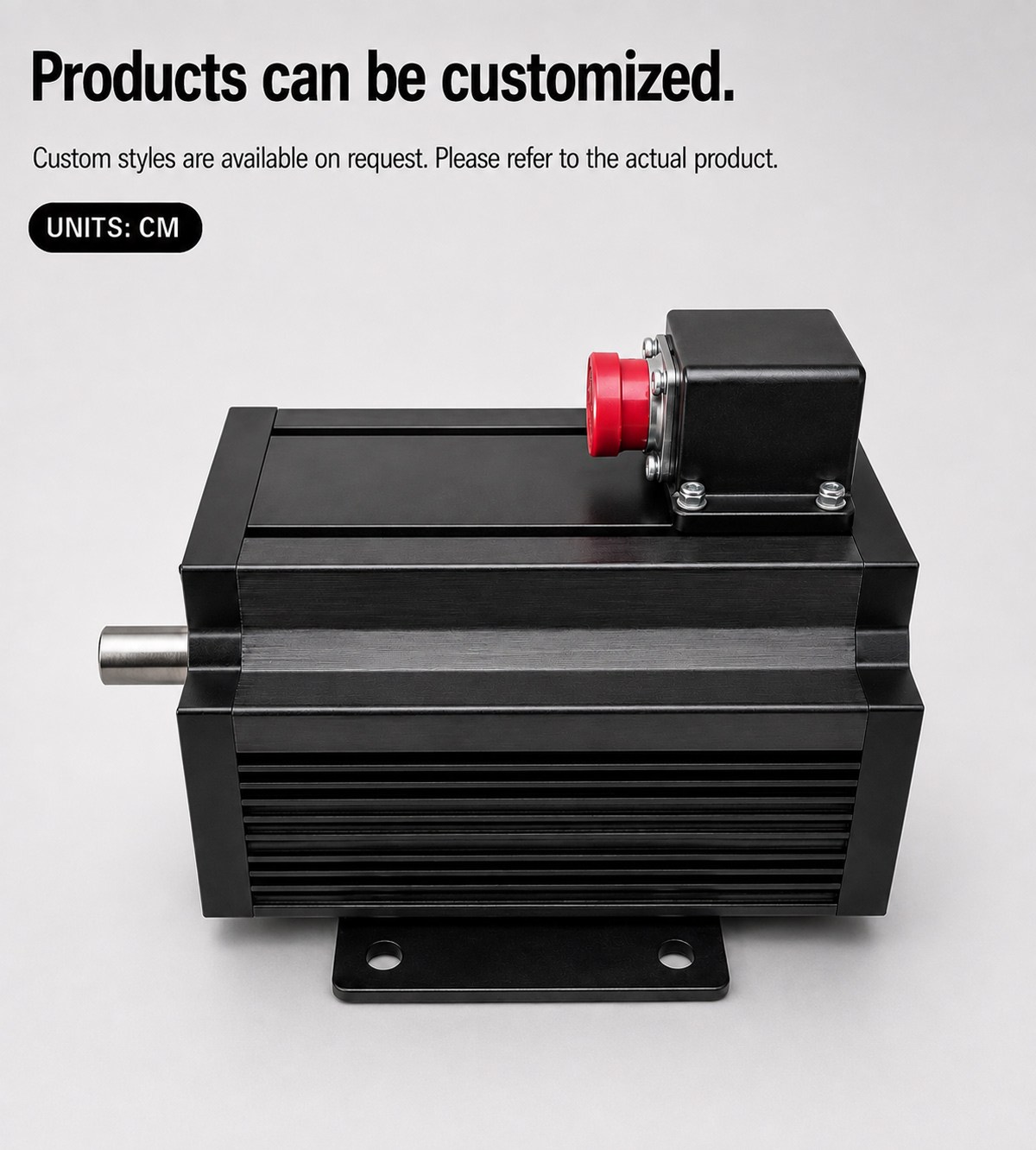

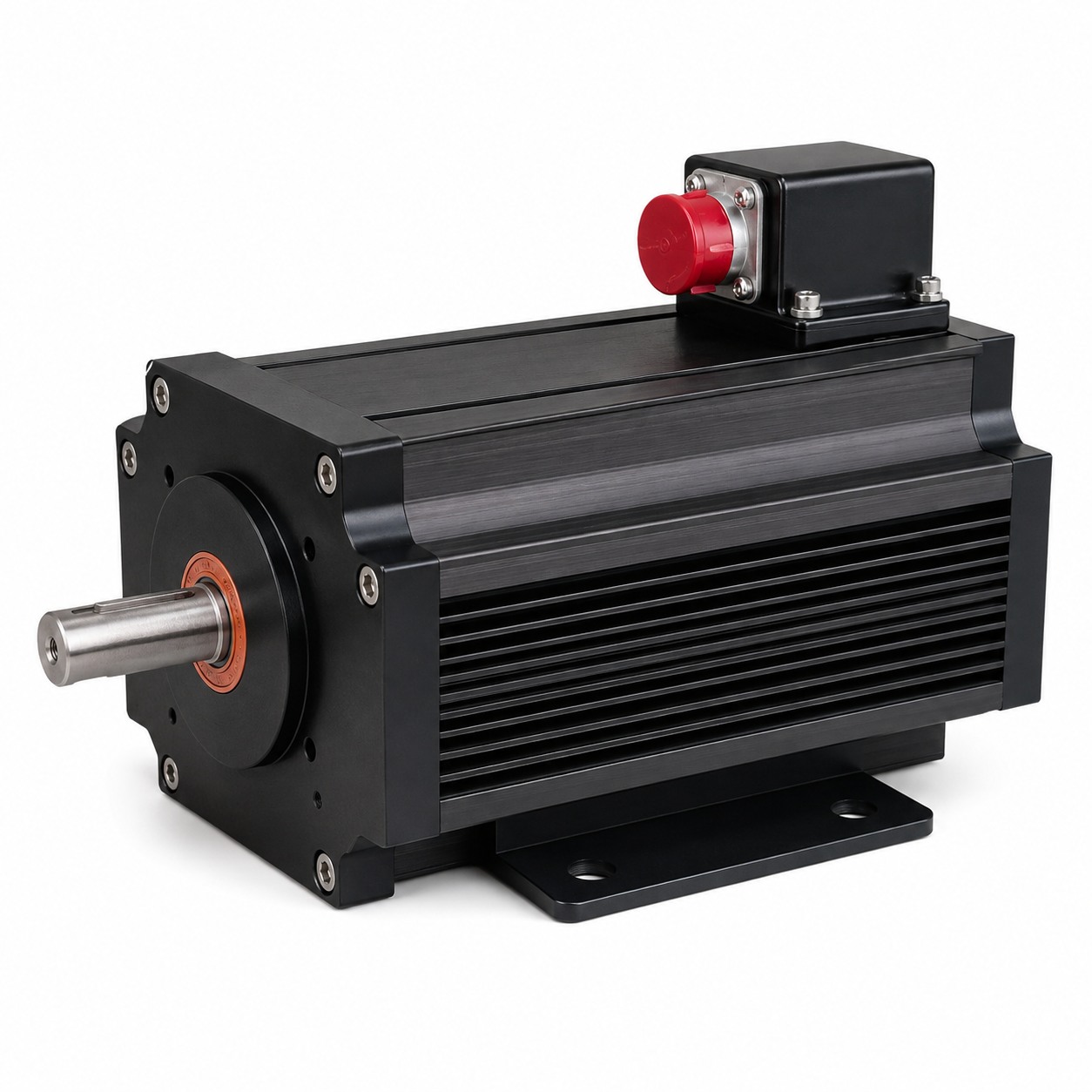

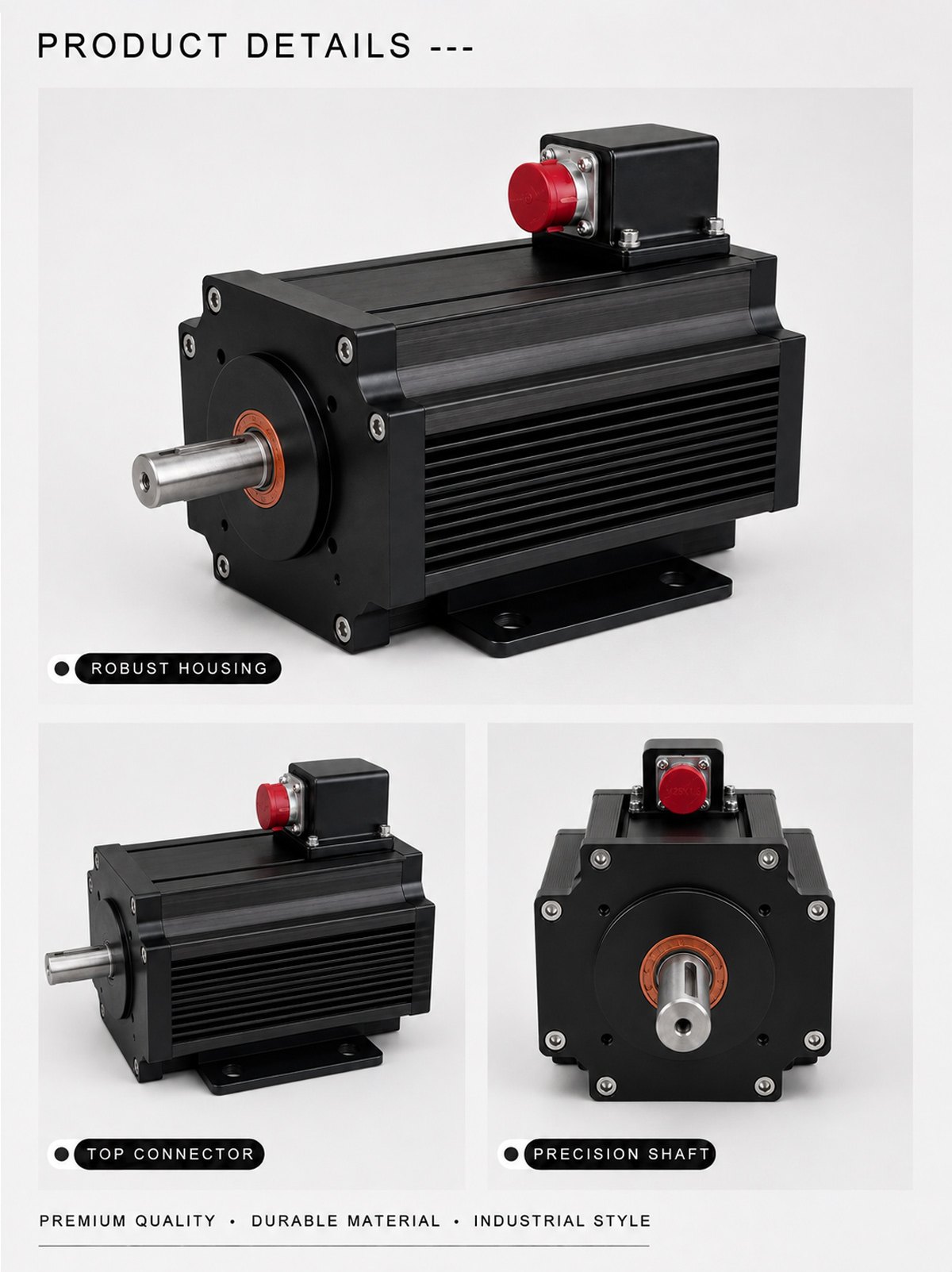

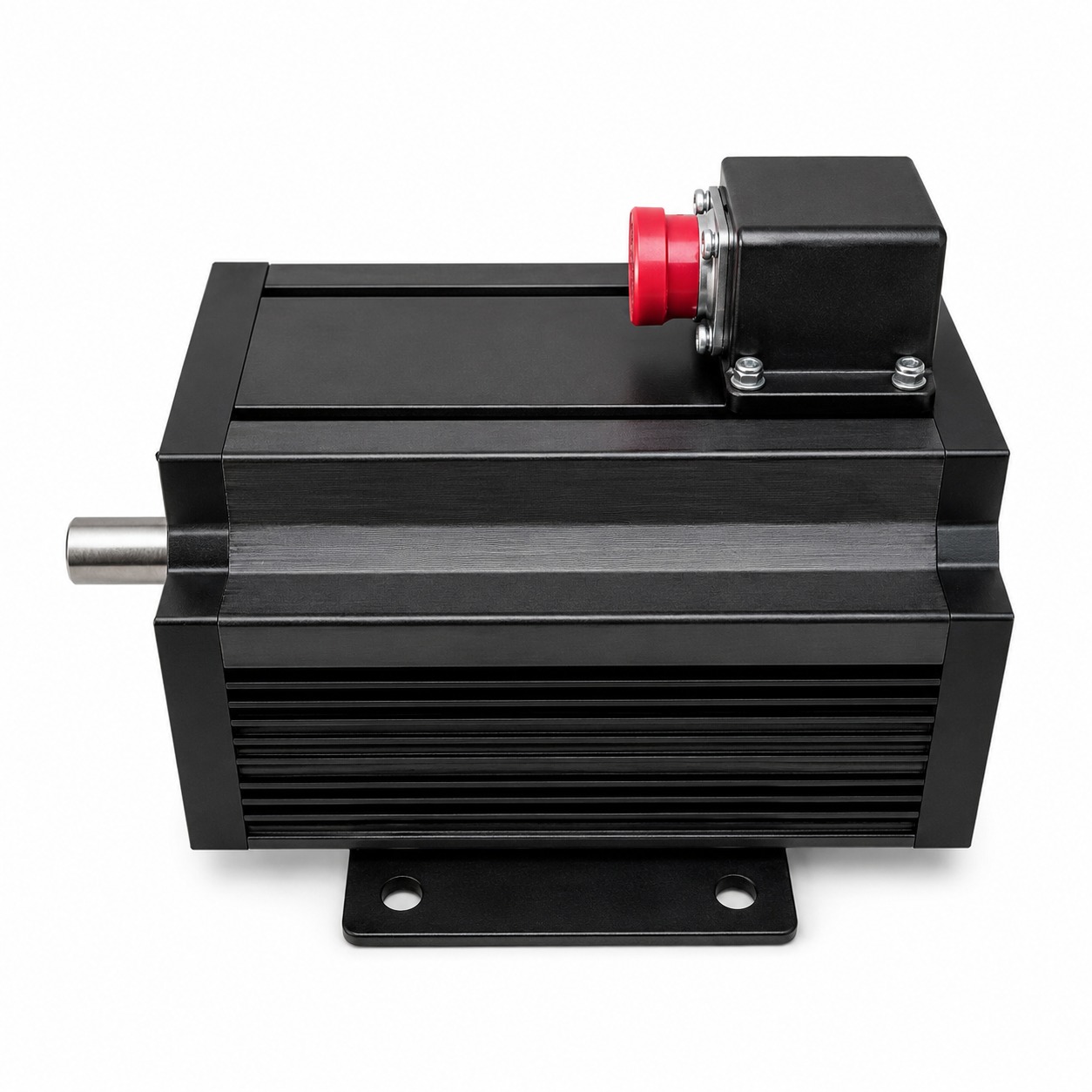

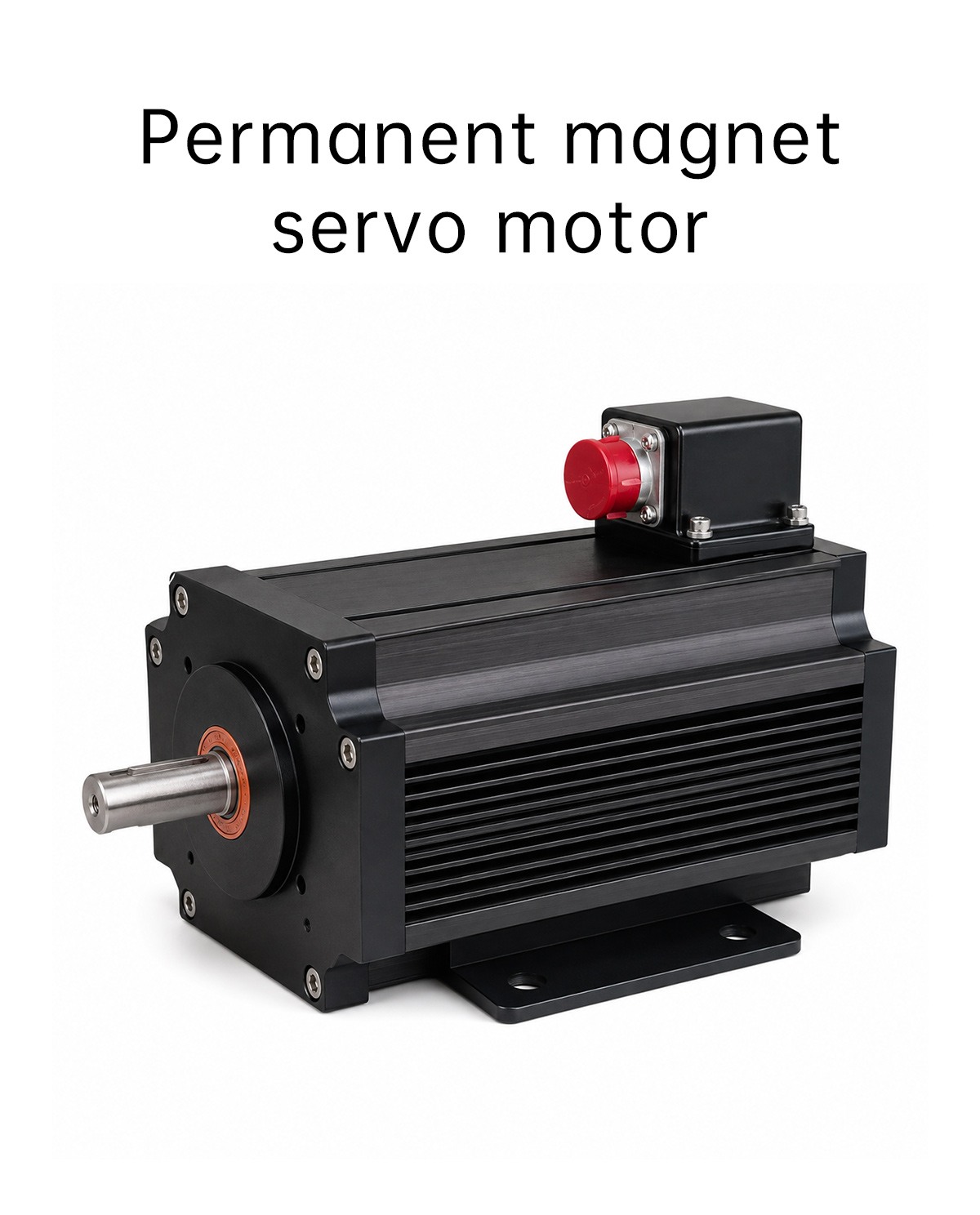

Permanent Magnet Servo Motor(CF-180ST-N20A)

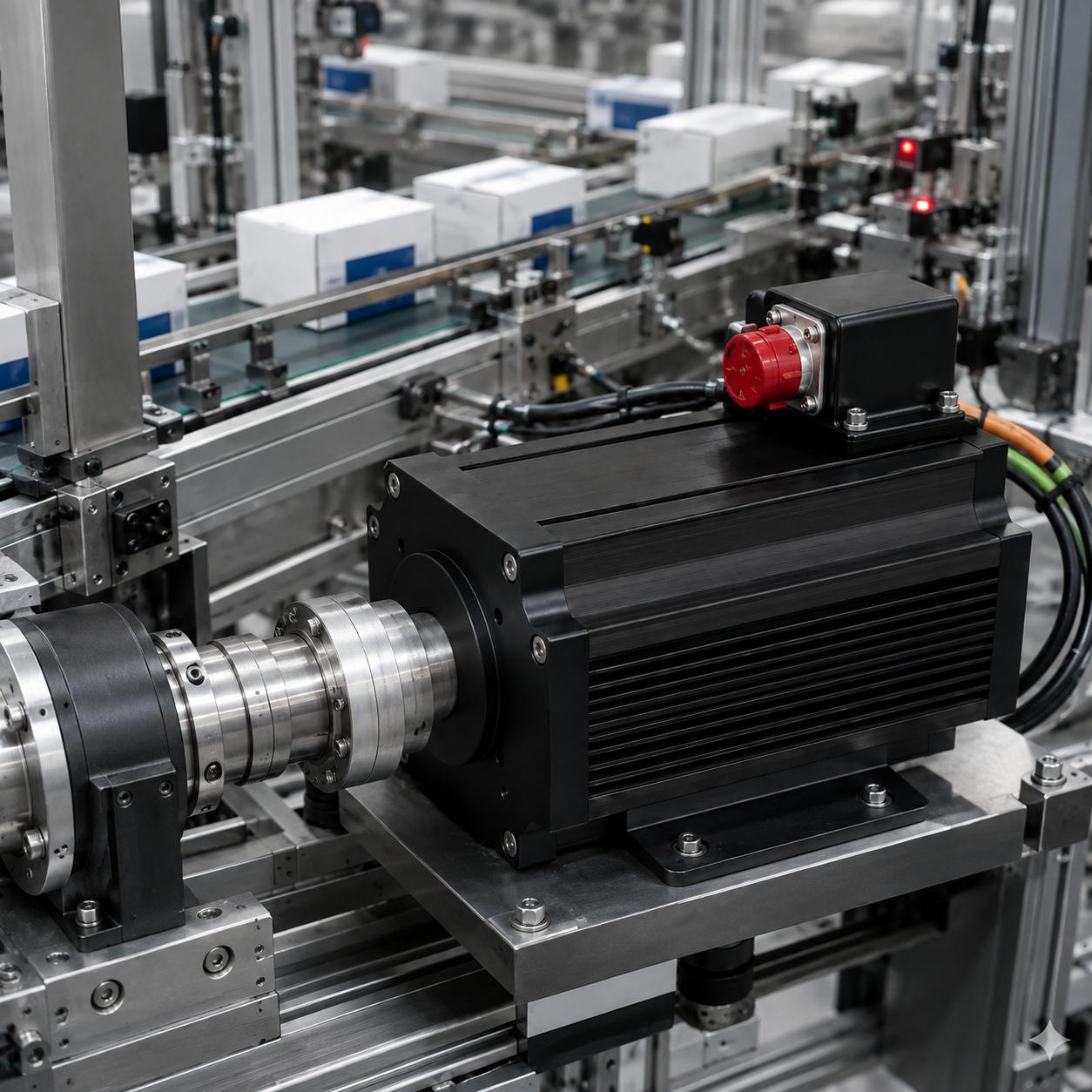

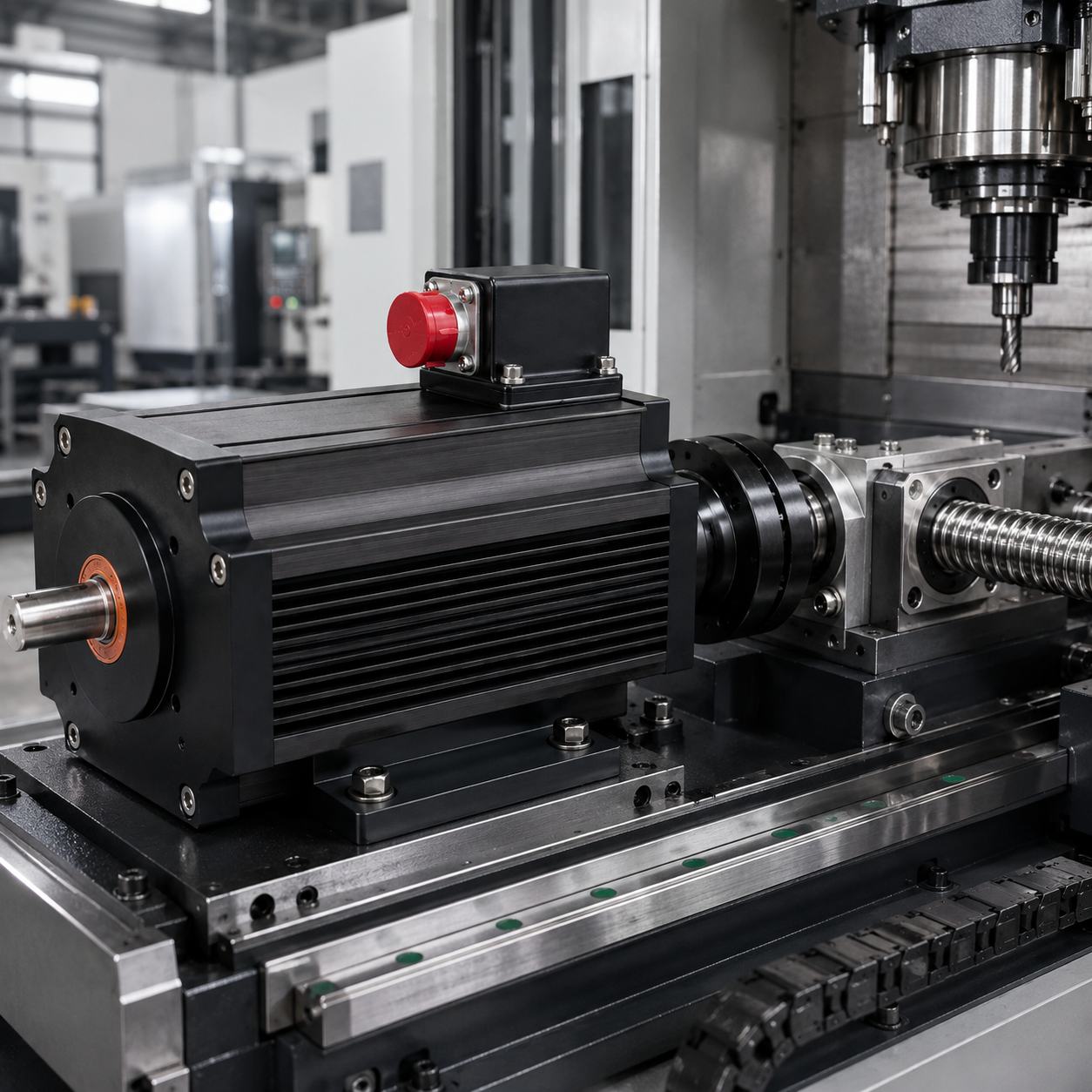

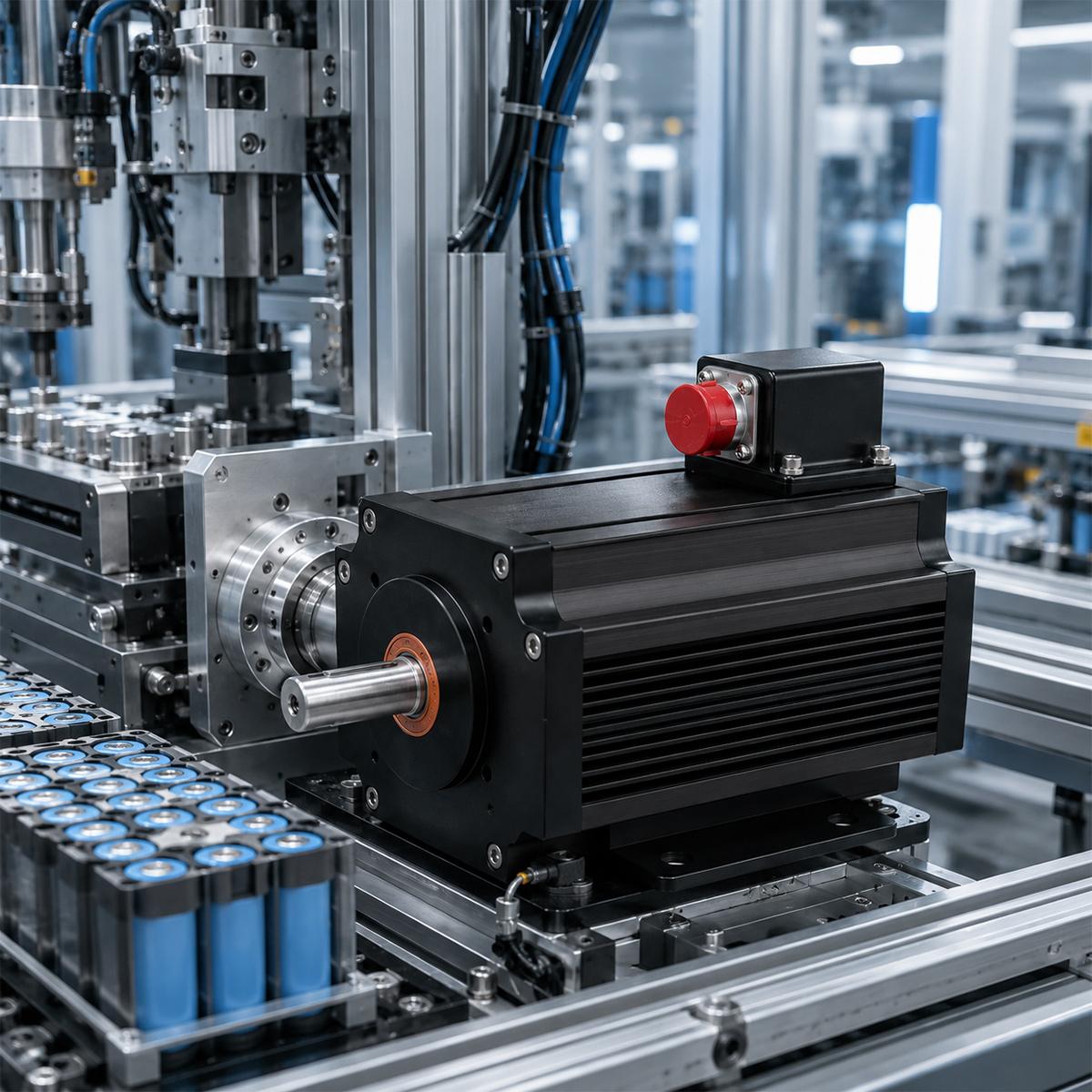

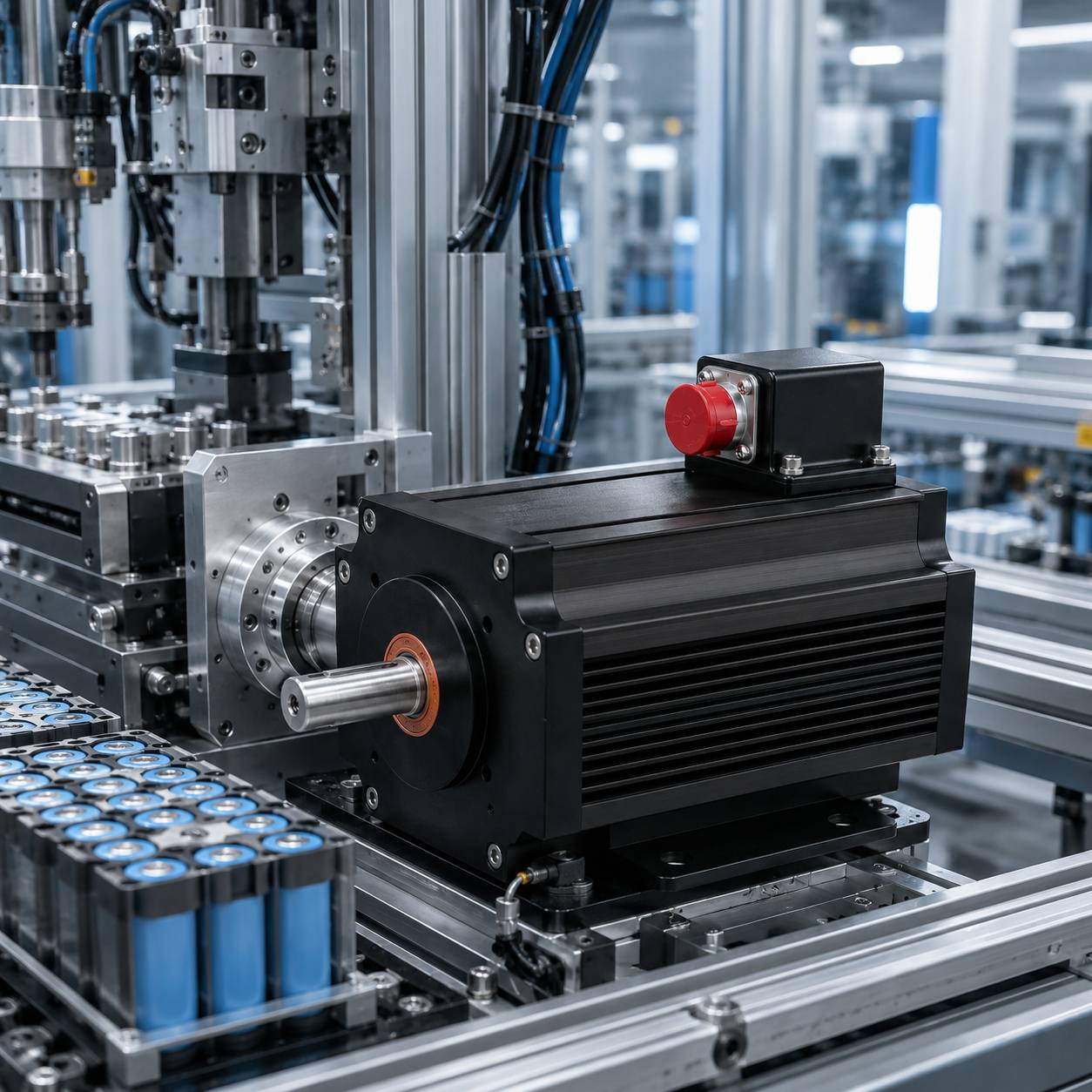

Cifu Technology’s series of permanent magnet servo motors serve as high-performance power cores designed specifically for industrial automation, precision drive systems, and intelligent manufacturing. Available in mainstream frame sizes such as 140mm and 180mm, these motors utilize high-energy-product permanent magnet materials and an optimized electromagnetic design, delivering high power density, superior overload capability, and exceptional dynamic response. They are widely used in high-precision control applications, including CNC machine tools, industrial robots, automated packaging equipment, printing machinery, lithium-ion battery manufacturing, and precision textile machinery.

Naming Convention:
1. Brand Prefix:
Code: CF-
Meaning: Cifu Technology
2. Frame Size and Motor Type:
Code Examples: 180ST / 140ST
Meaning: The number indicates the flange mounting dimension (e.g., 180 represents a 180mm flange); ST denotes a sine-wave permanent magnet synchronous servo motor.
3. Feedback/Encoder Type Code:
N: Optical encoder / Wire-saving encoder
R: Resolver
M: Magnetic encoder
4. Rated Speed ​​Code (in units of 100 RPM):
20: 2000 RPM
25: 2500 RPM
30: 3000 RPM
5. Operating Voltage Class Code:
A: 220 VAC (Single-phase/Three-phase)
B: 380 VAC
C: 110 VAC

📌 Please read here for more details on product specifications.

Description

Additional information

Motor Model

180ST-N20AB-1

Motor Power

5.5 kW

Motor Bus Voltage

220 VAC

Rated Speed

2000 RPM

Maximum Speed

2200 RPM

Rated Torque

26.3 N·m

Rated Current

20 A

Maximum Torque

50 N·m

Maximum Current

40 A

Torque Constant (±10%)

1.3 N·m/A

Back-EMF Constant (±10%)

– V/kRPM

DC Resistance (25°C) (±10%)

0.25 Ω

Rotor Inertia

0.008 kg·m²

Number of Pole Pairs

5

Protection Class

IP67

Insulation Class

H

Duty Cycle

S1

Motor Efficiency

≥92%

Motor Noise

≤70 dB (at 1m distance)

Operating Frequency

166 Hz
