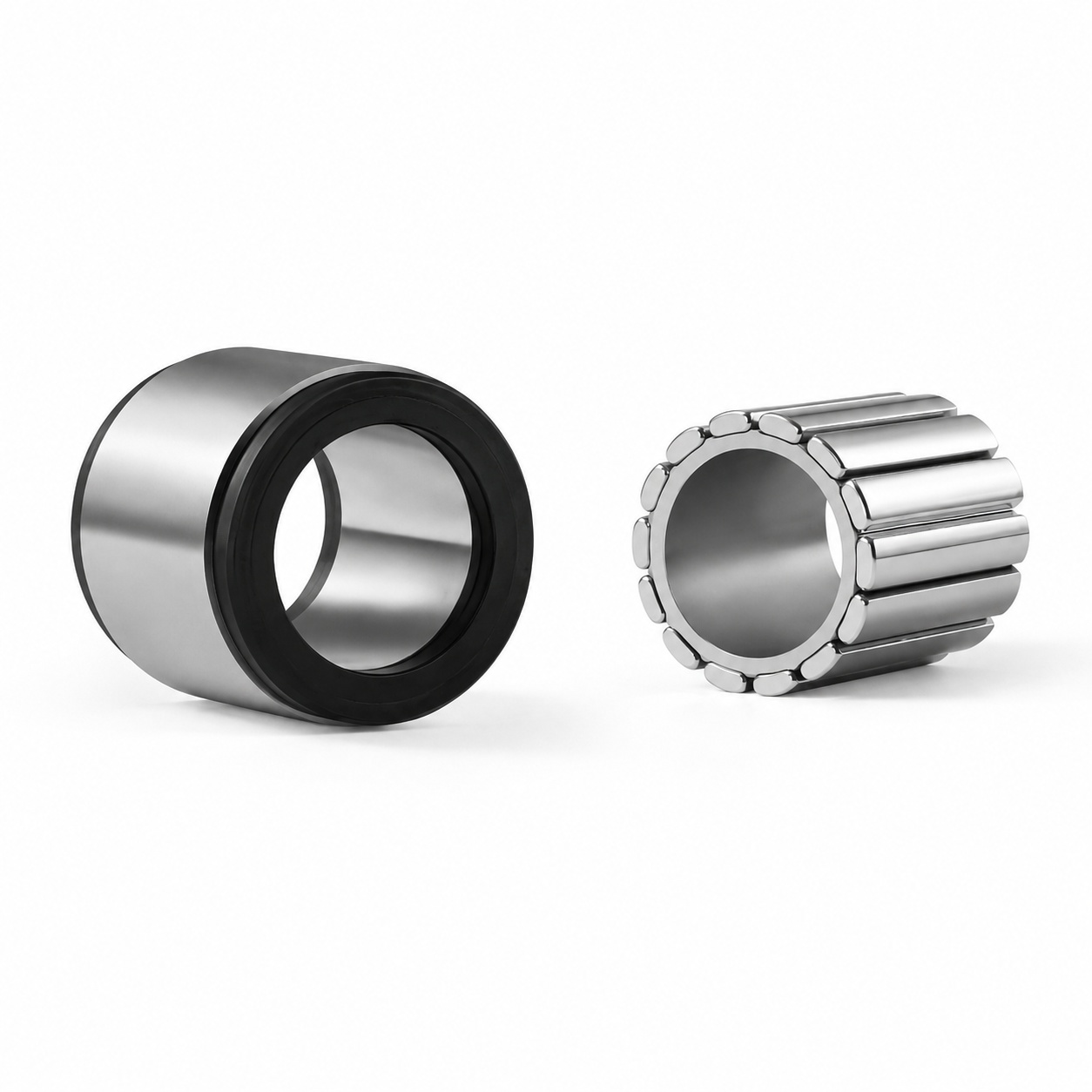

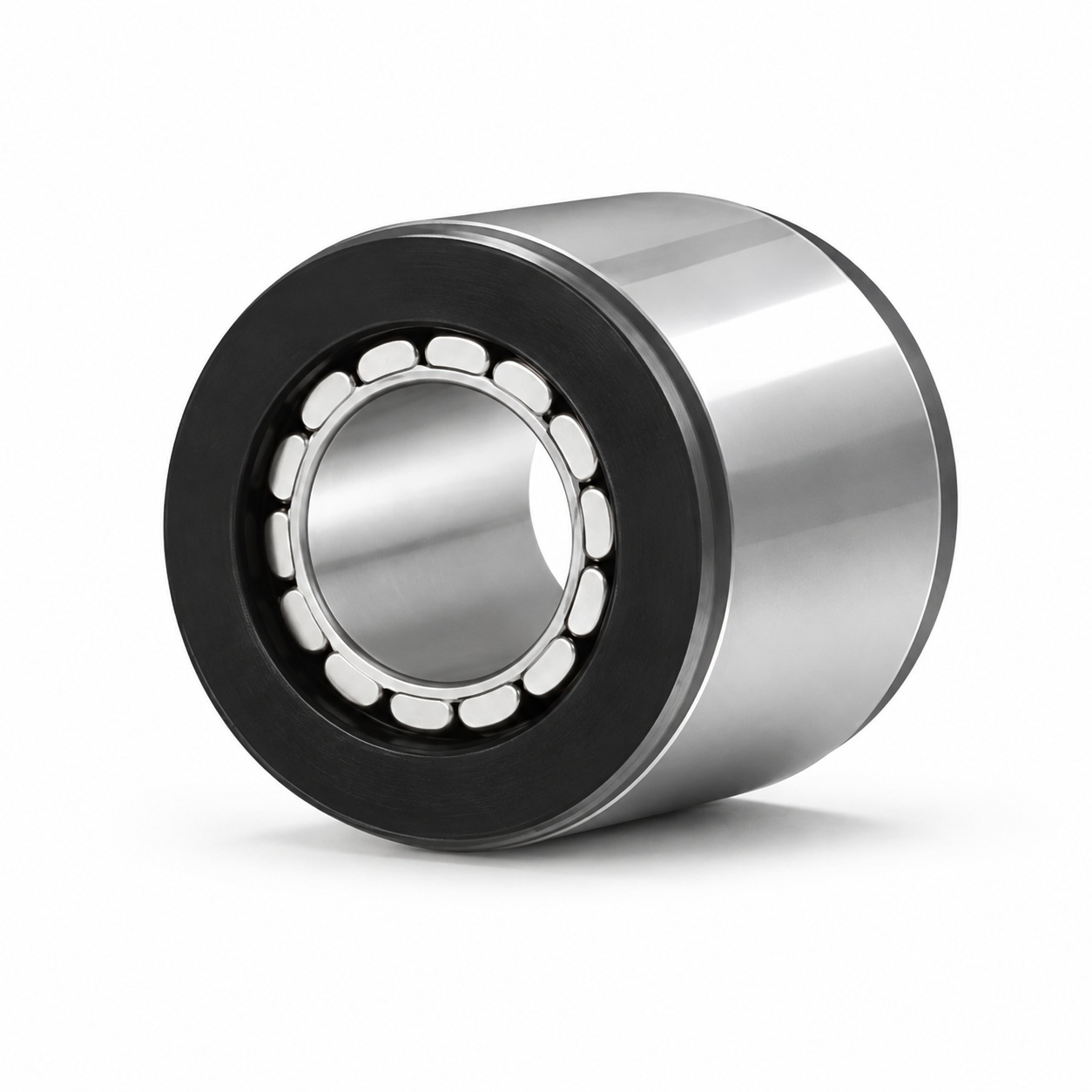

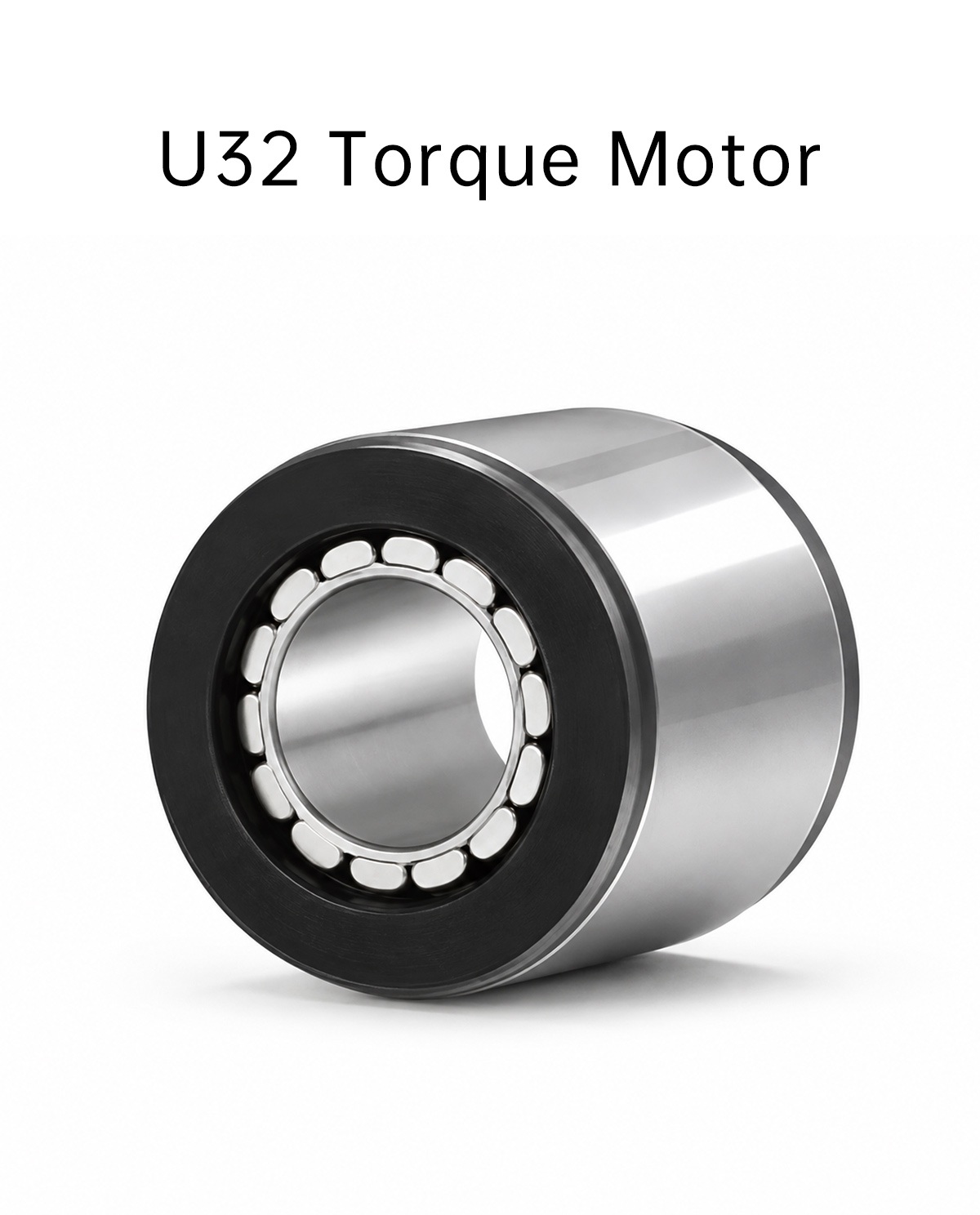

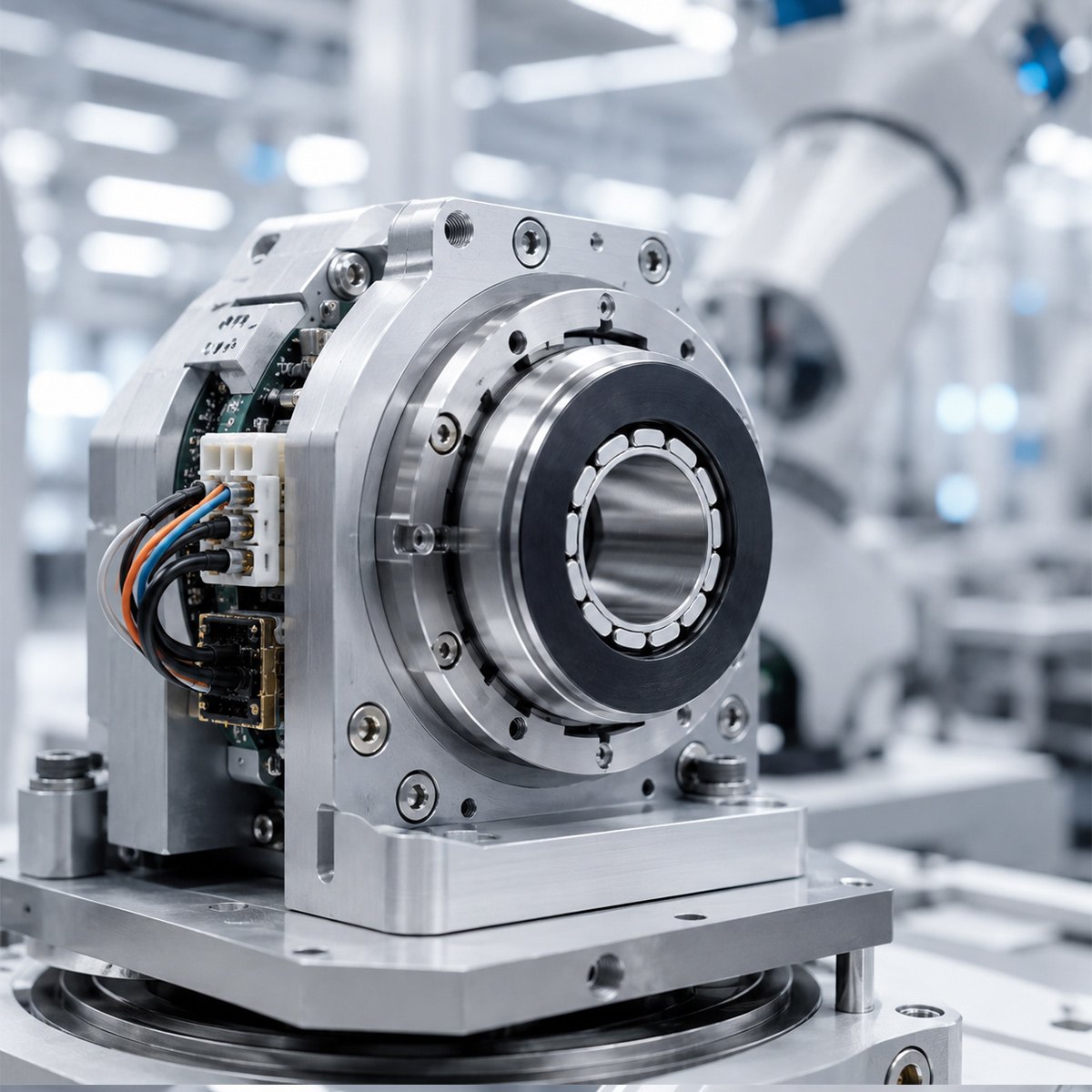

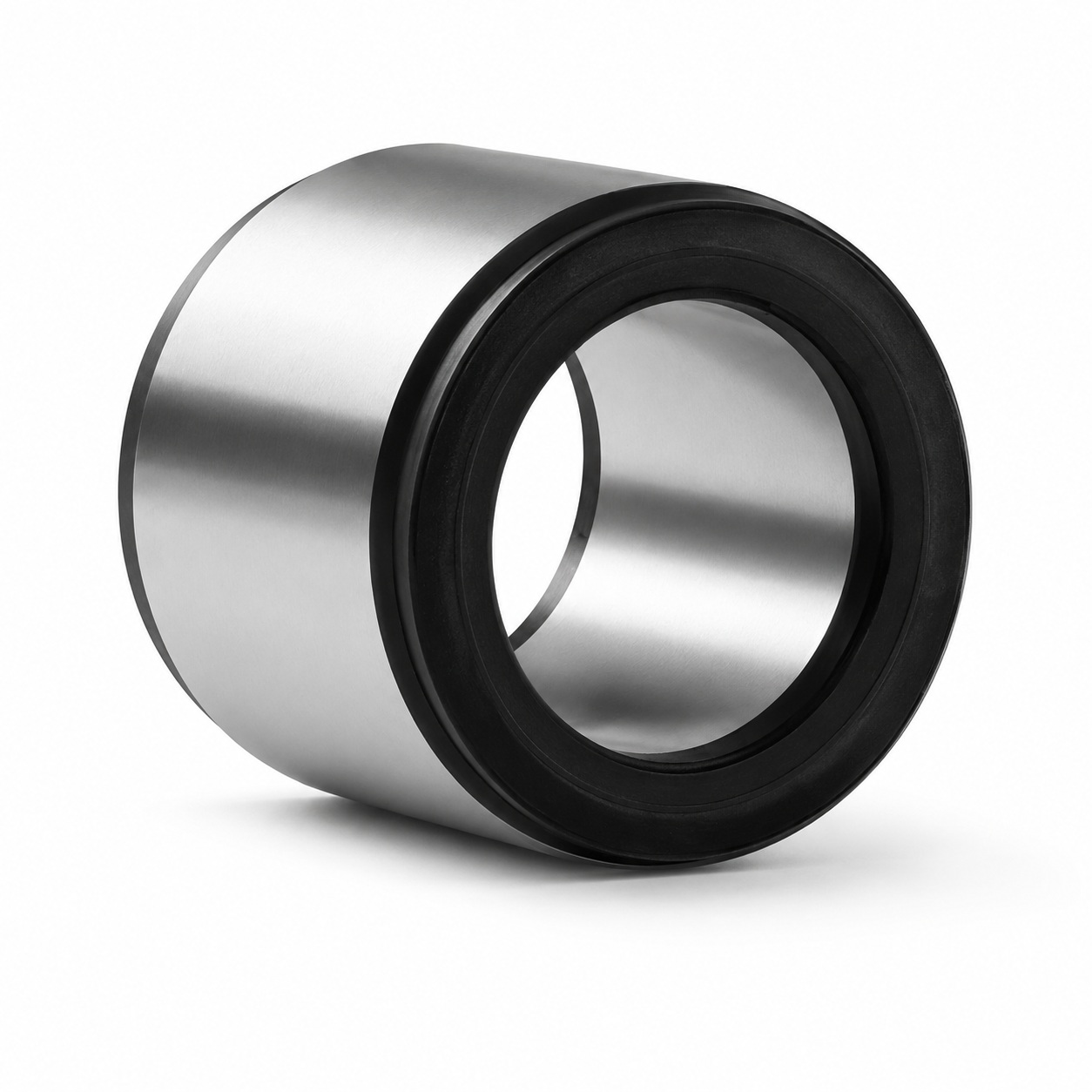

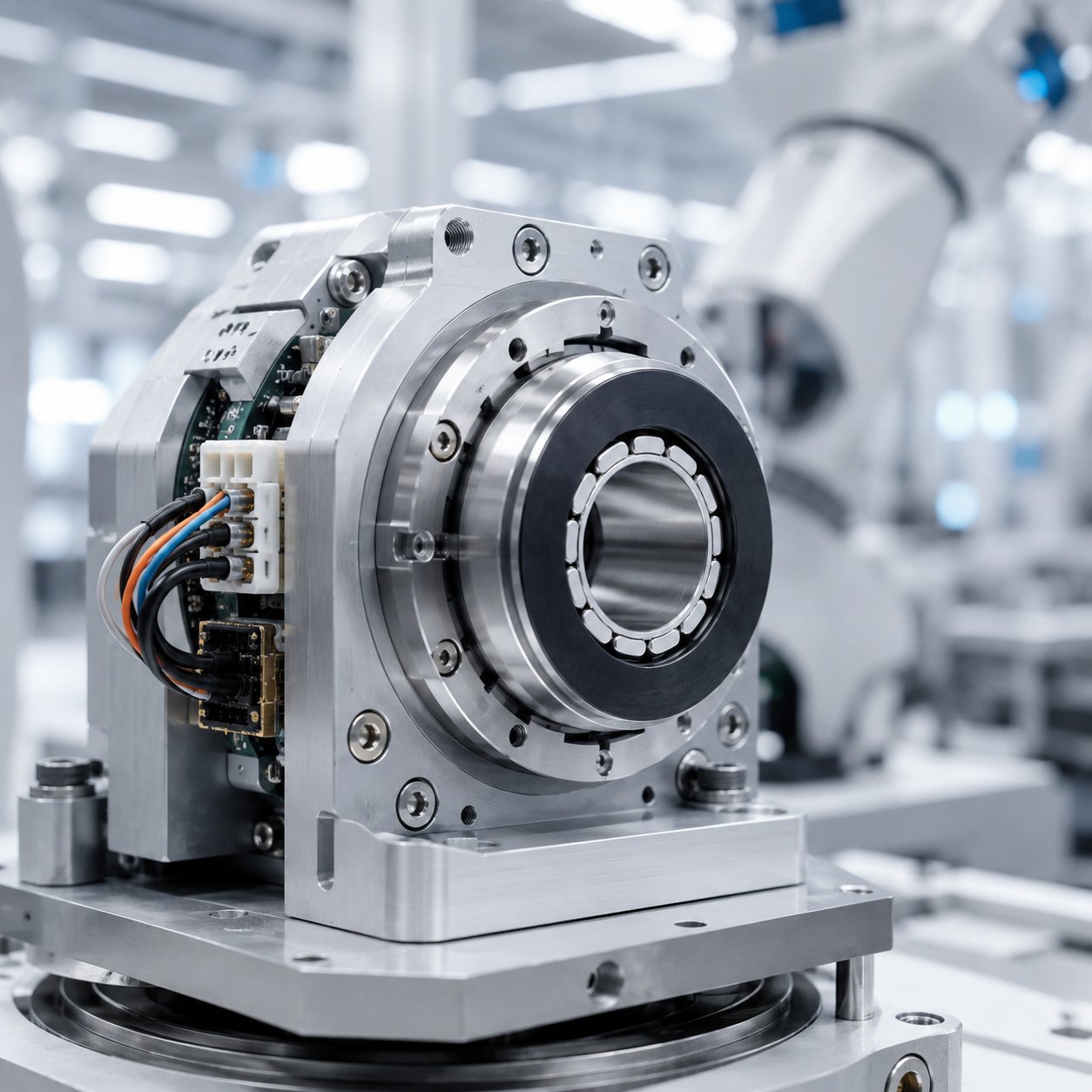

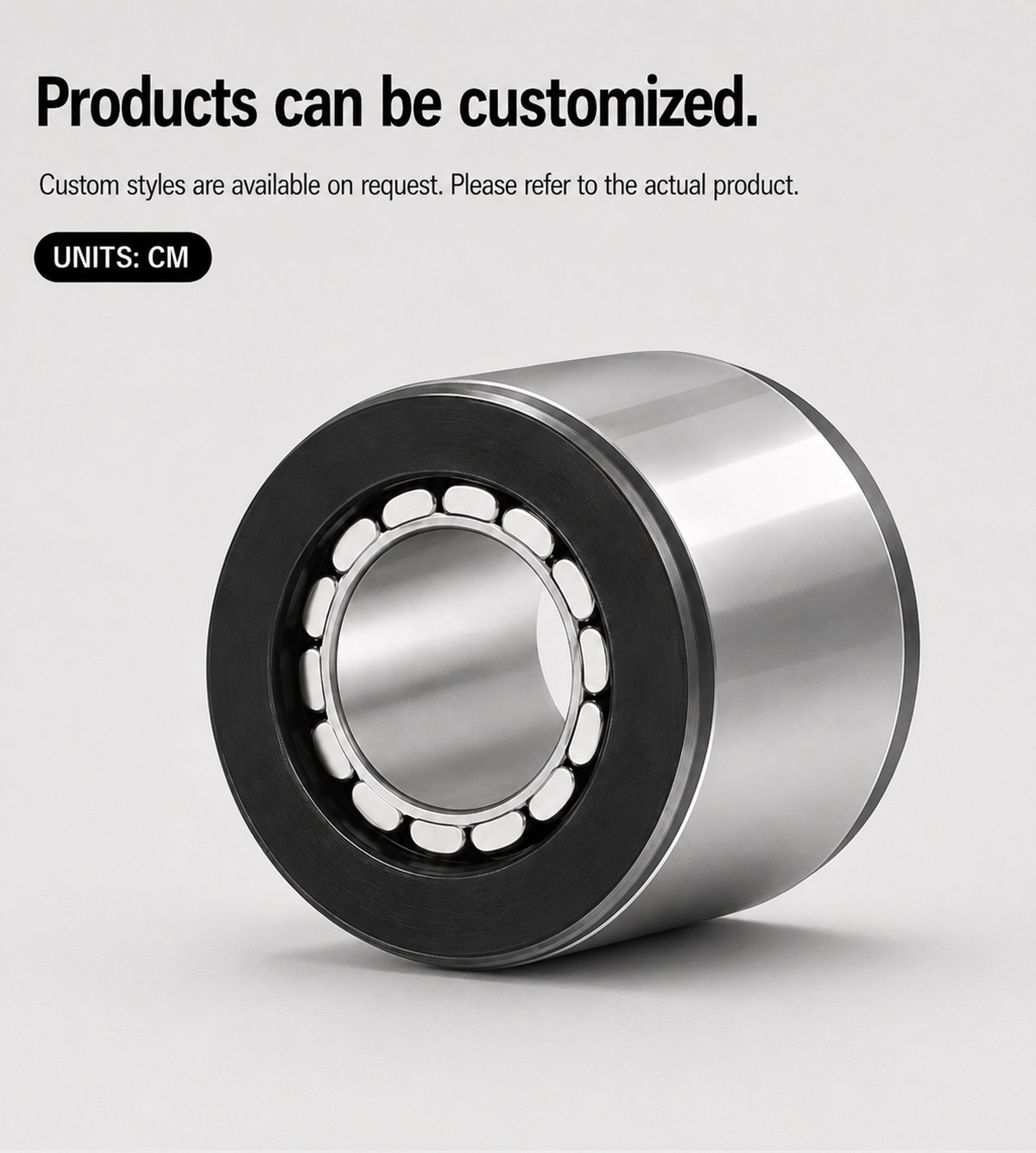

Torque Motor (U32)

Model: U32 Series
Driver Input Voltage (VDC): 24/48
Rated Output Power (W): 36.65/36.65
Rated Torque (N·m): 0.07/0.07
Peak Torque (N·m): 0.2/0.2
Rated Current (A): 1.9/1.2
Peak Current (A): 3.8/3.6
Rated Speed ​​(rpm): 5000/5000
Max. Speed ​​(rpm): 5500/5500
Torque Constant (N·m/A): 0.036/0.058
Rotor Inertia (kg·cm²): 0.008/0.019
Back-EMF Constant (Vrms/krpm): 2.8/4.9
Line Resistance (Ω): 1.35/4.17
Line Inductance (mH): 0.19/0.73
Number of Pole Pairs (2P): 10/10
Weight (kg): 0.031/0.05

Dimensions (mm):
L1 (Stator Core Height): 8/8
L2 (Rotor Height): 9/9
L3 (Overall Height): 12.7/12.7
