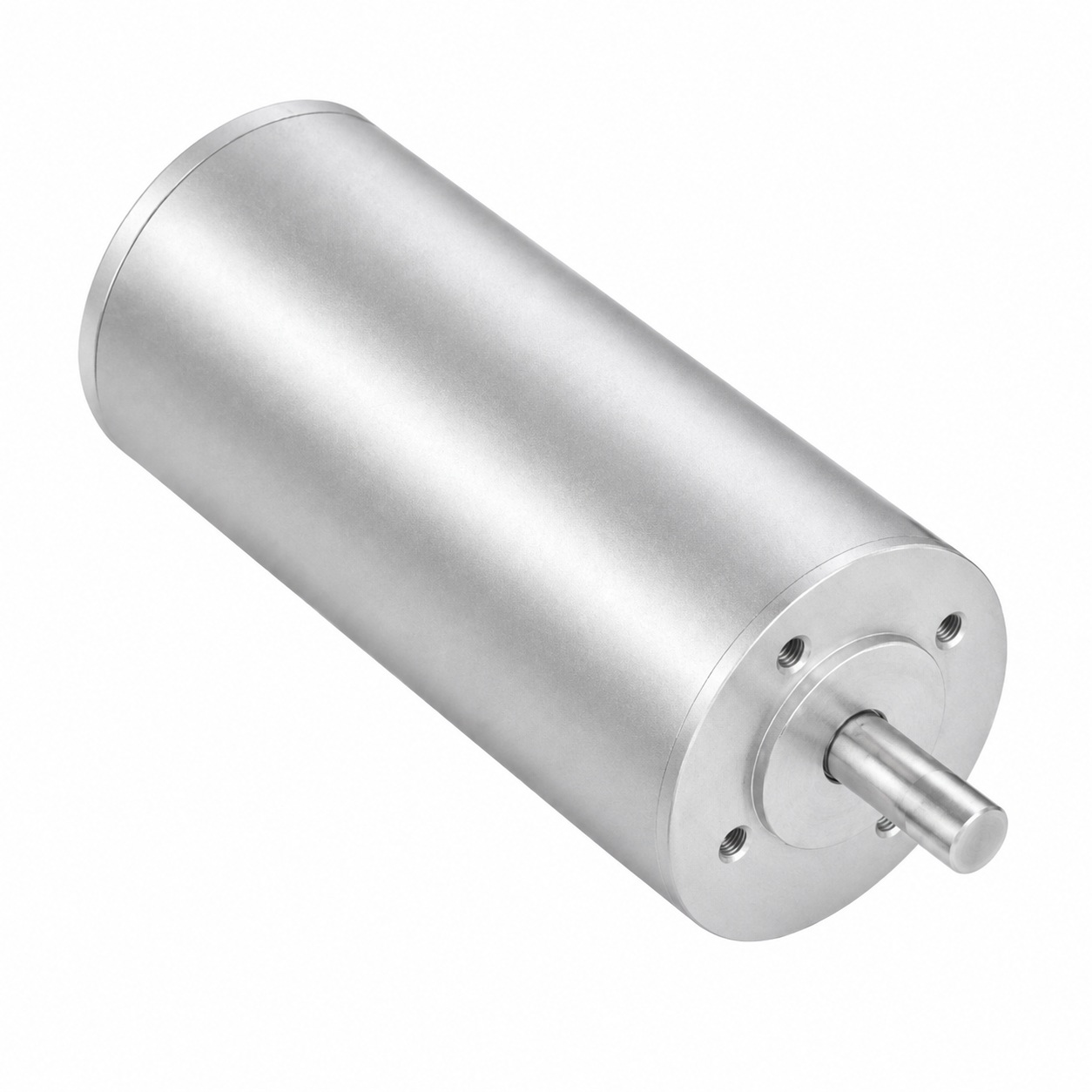

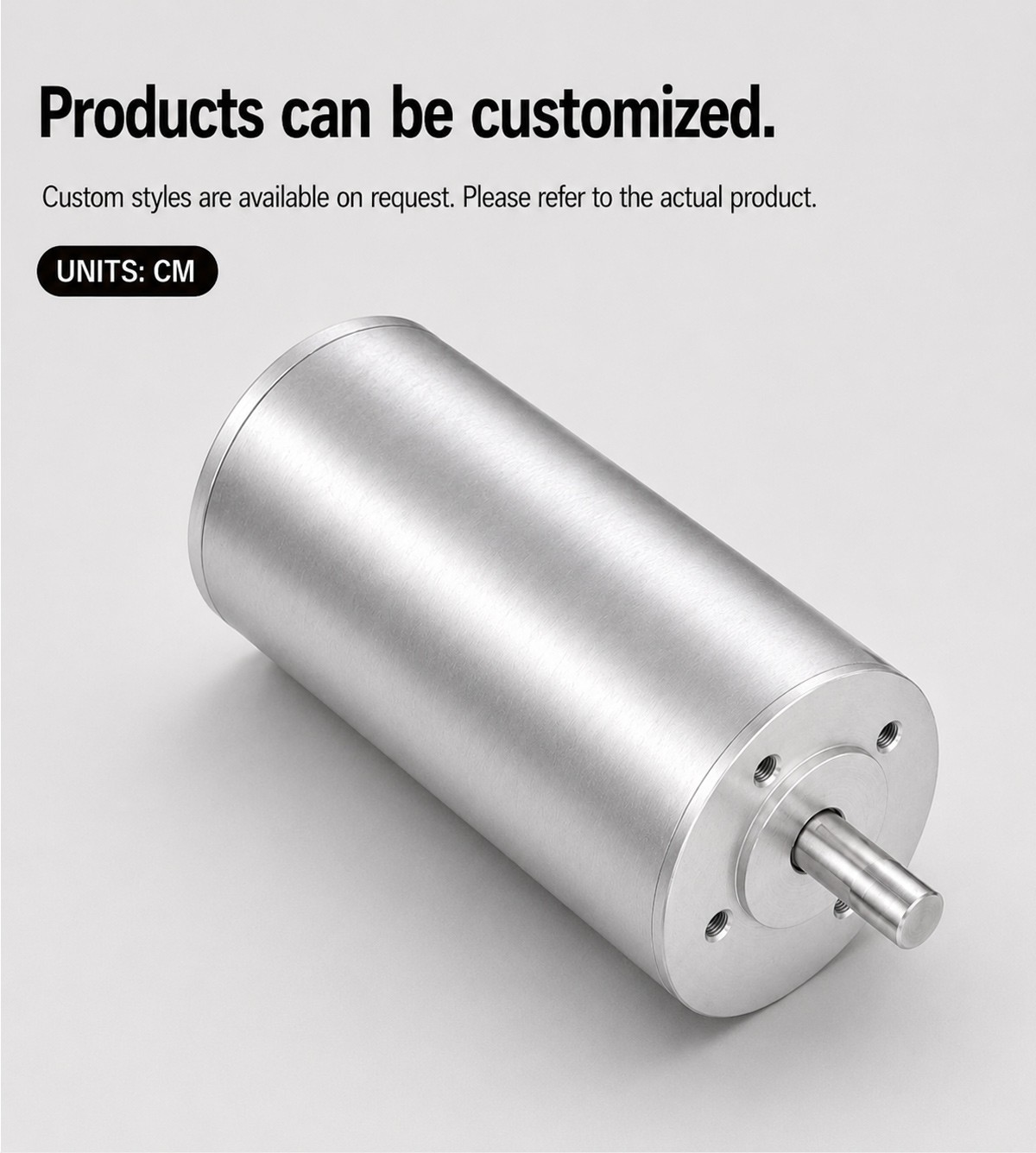

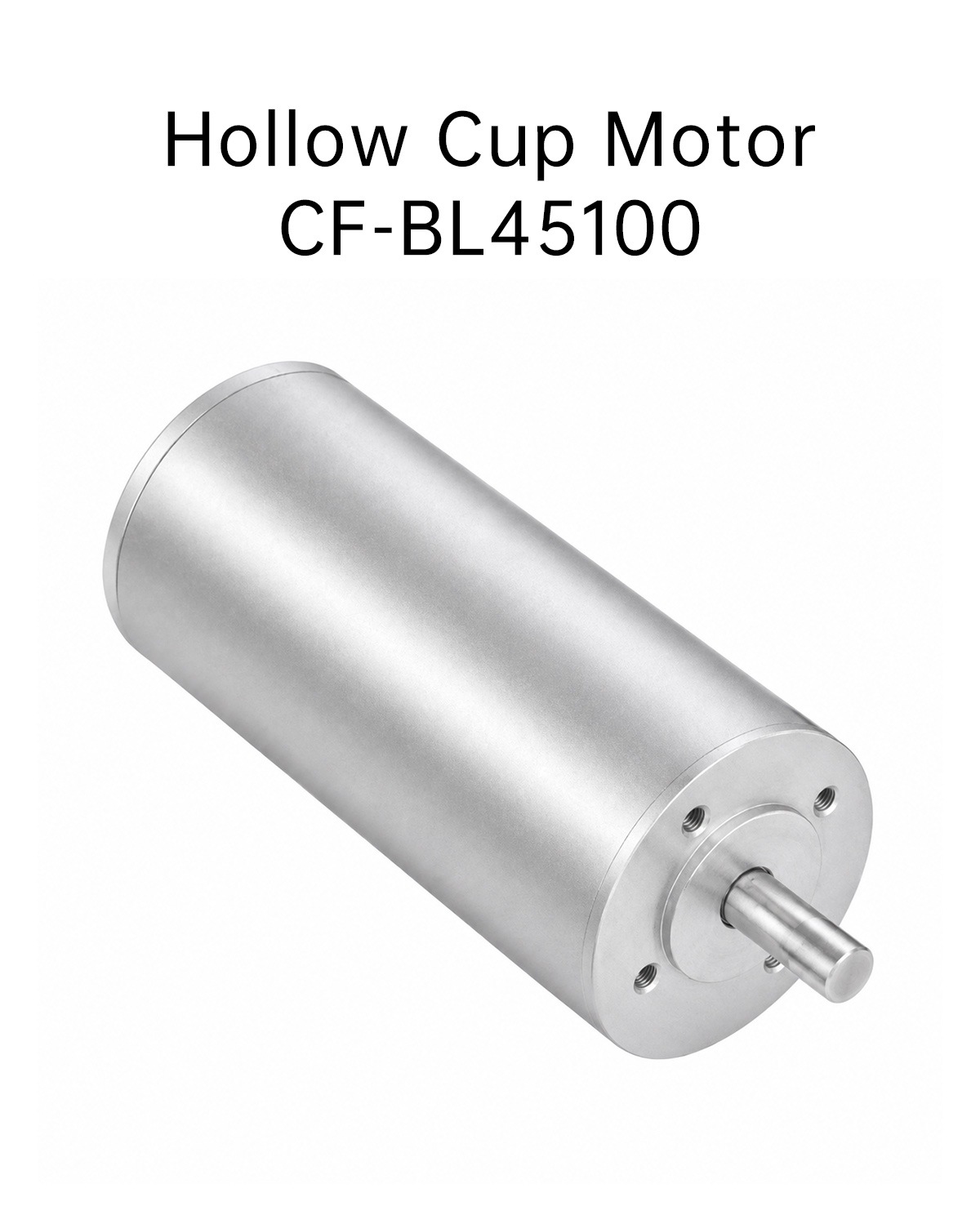

Hollow Cup Motor (CF-BL45100)

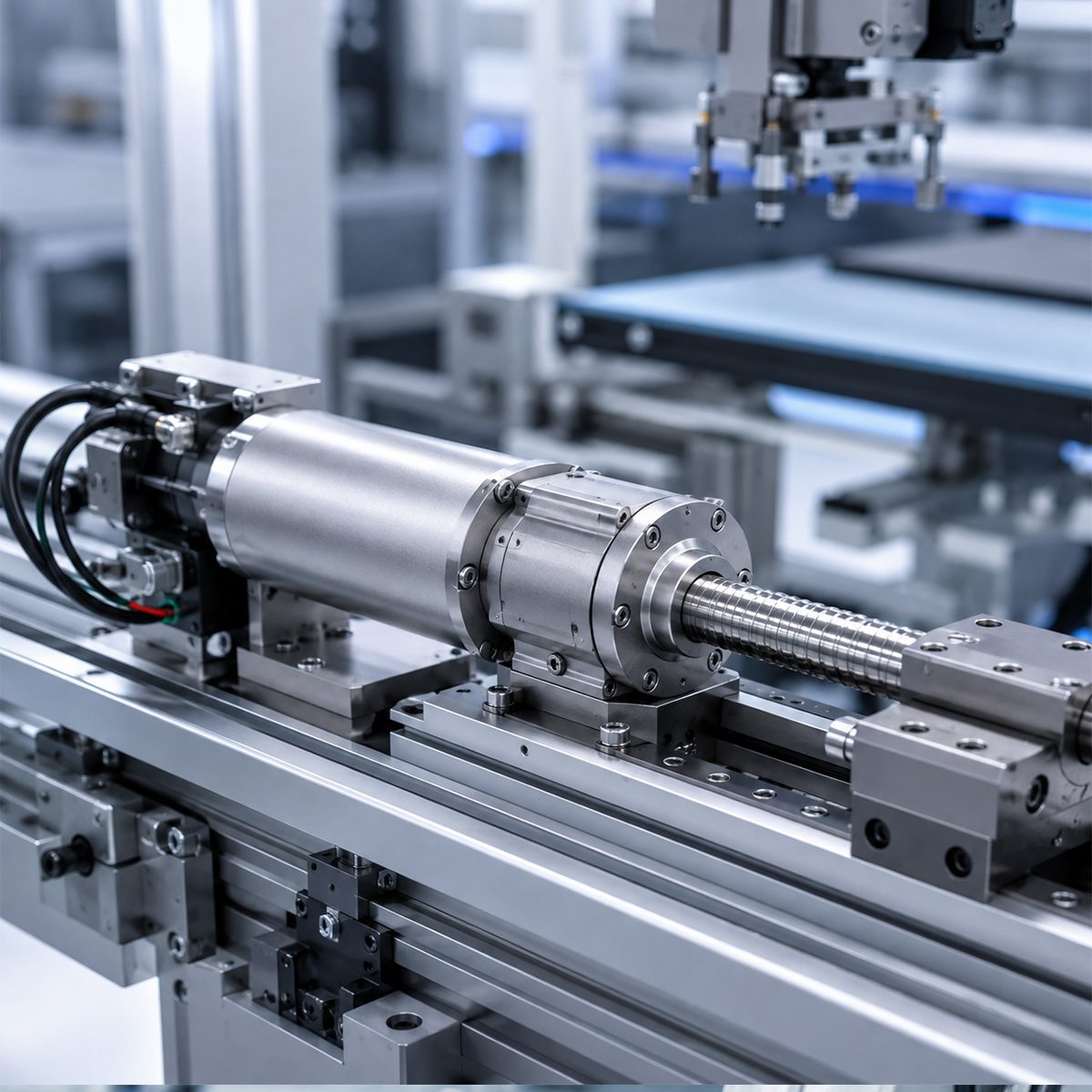

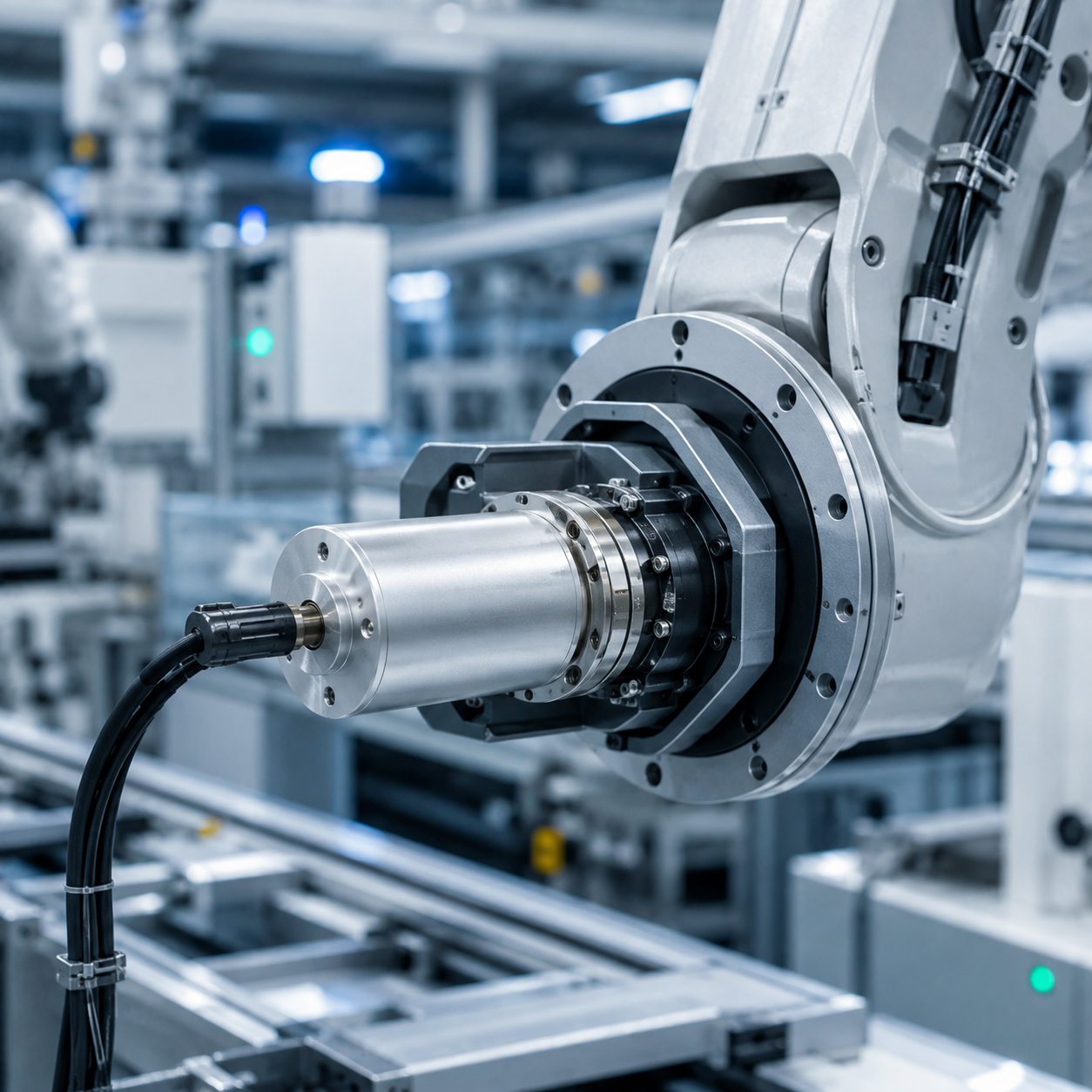

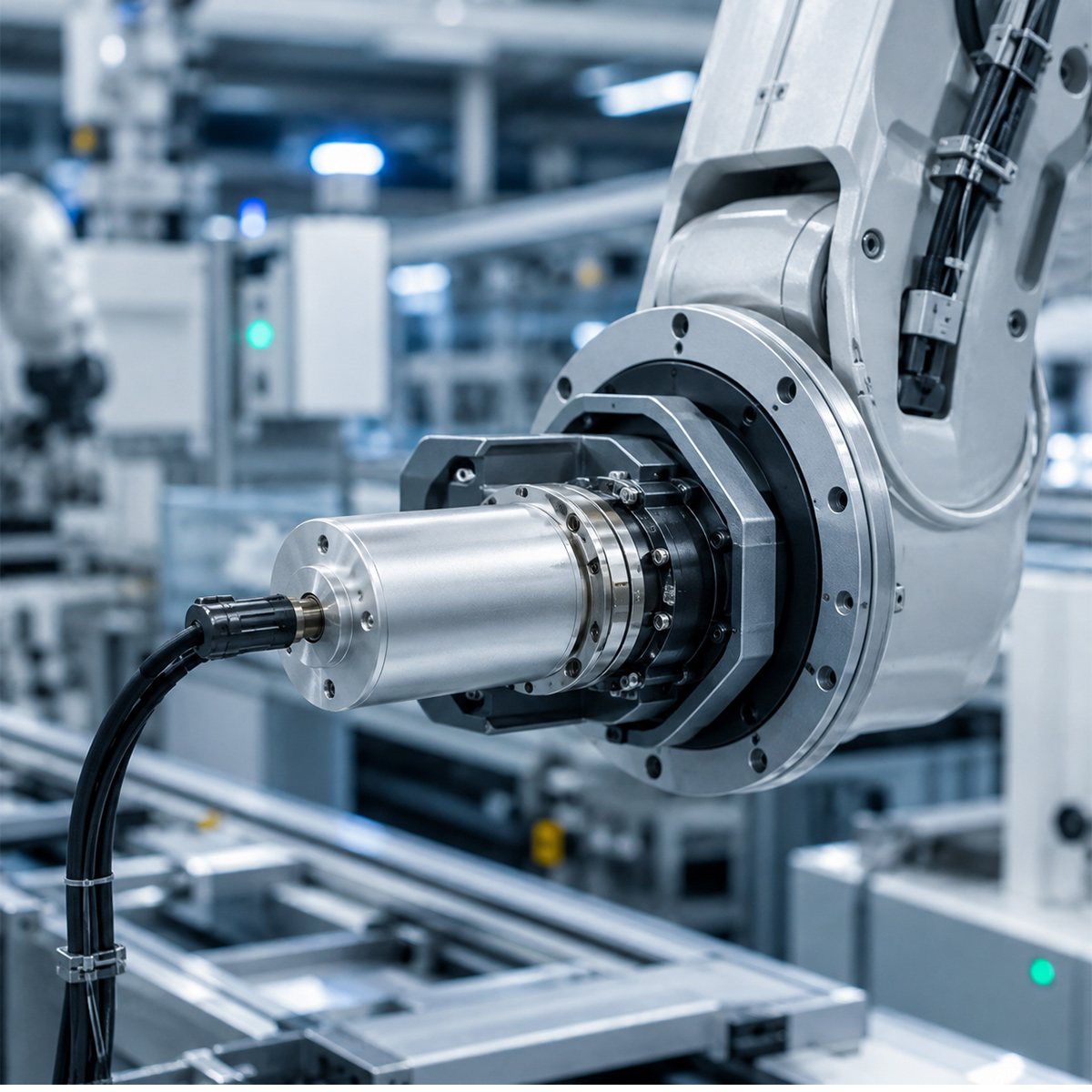

Cifu Technology manufactures a series of high-performance brushless coreless DC motors characterized by high efficiency, stable output, and long service life. These motors offer a variety of voltage and configuration options and support integrated solutions such as gearboxes and encoders, providing reliable power solutions for automation equipment, robotics, and intelligent control systems.

Note: Motor data is measured in a standard test environment at 25°C. Operating the motor beyond the recommended continuous maximum parameters may reduce its service life or cause damage. In high-temperature environments, the load current must be reduced to protect the motor.

Naming Convention
e.g.
CF-BL2850
Meaning:

* CF = Cifu
* BL = Brushless
* 28 = Outer diameter 28mm
* 50 = Motor length 50mm

📌 Please read here for more details on product specifications.

Description

Additional information

Motor thermal resistance

3.3 K/W

Motor thermal time constant

1740 s

Dynamic load: Axial

8.0 N

Dynamic load: Radial (5 mm from shaft end)

180.0 N

Maximum mounting force (static)

170 N

Maximum mounting screw insertion depth

4.5 mm

Radial play (5 mm from shaft end)

≤0.02 mm

Axial play

0 (<8.0 N)

Maximum coil temperature

155°C

Ambient temperature

-30 to 65°C

Standard rear shaft diameter

8 mm

Standard rear shaft length “L”

0 / 3.7 / 5.5 mm
