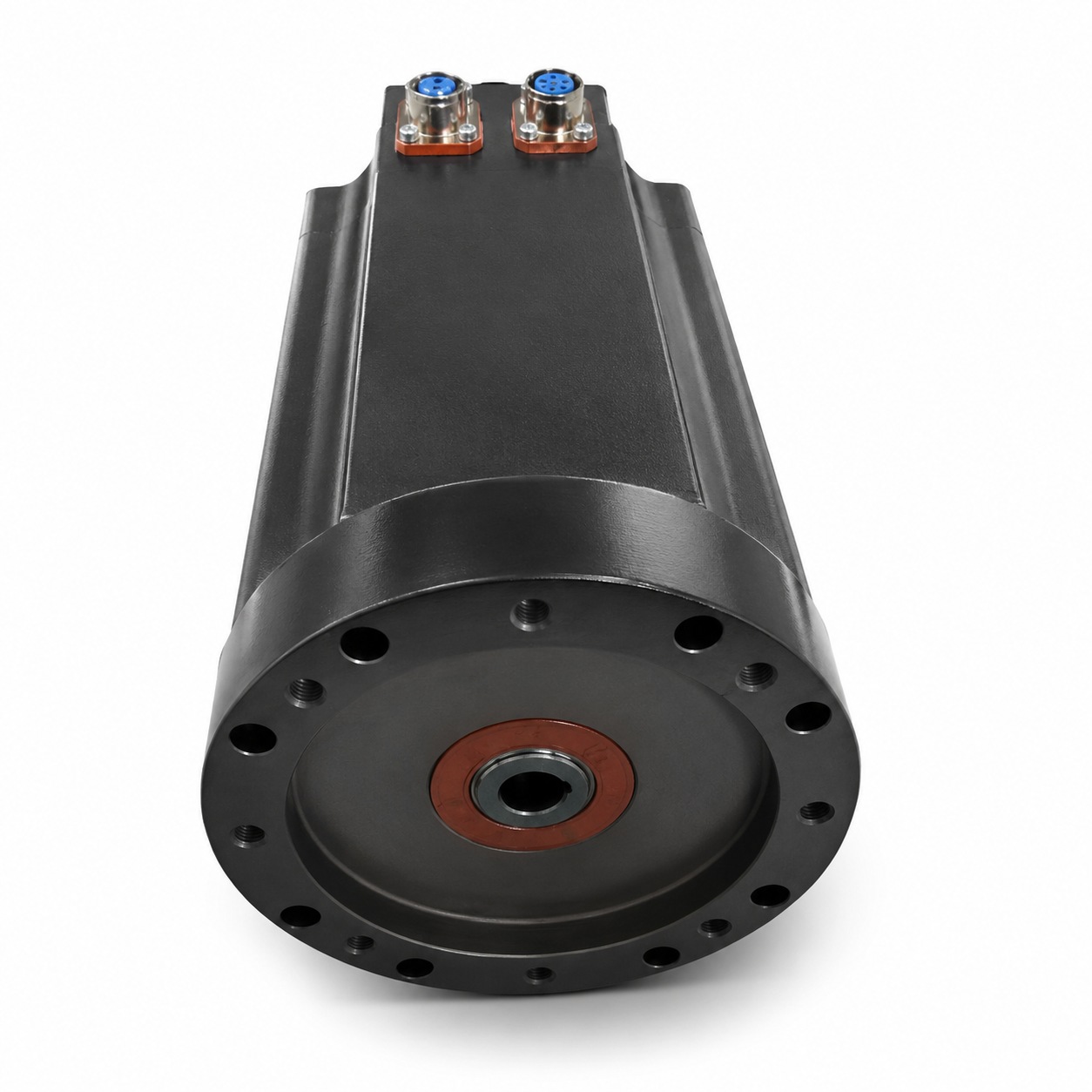

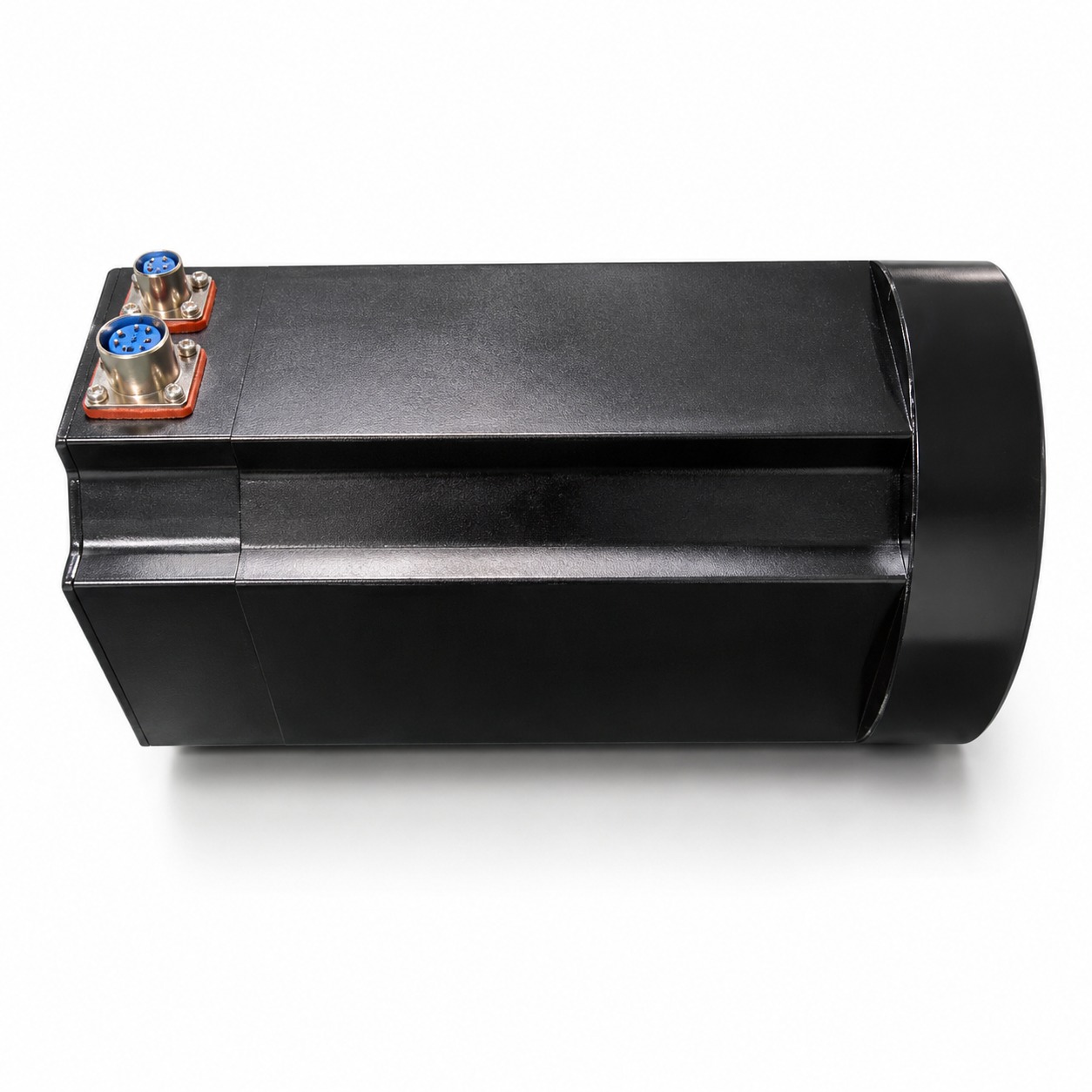

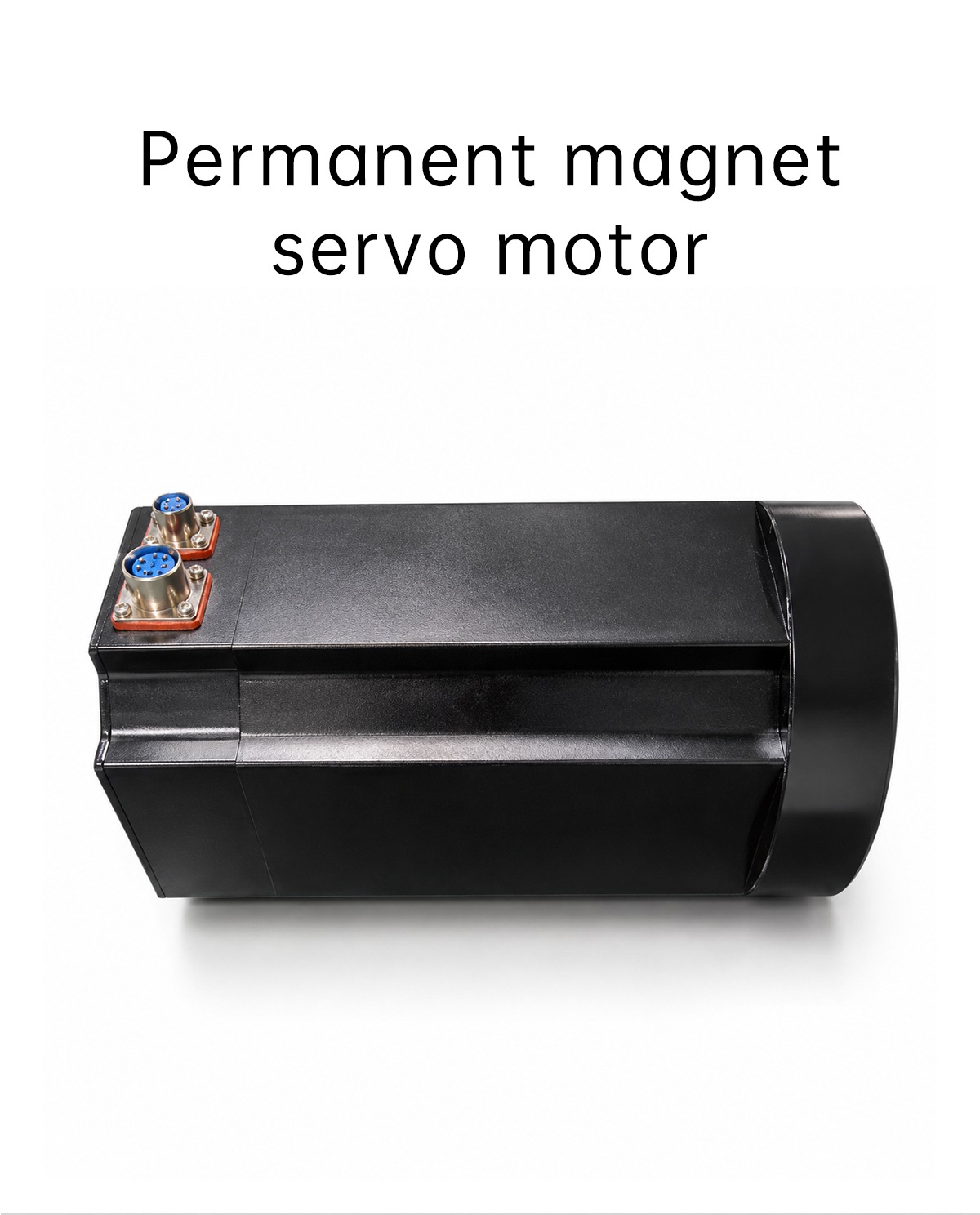

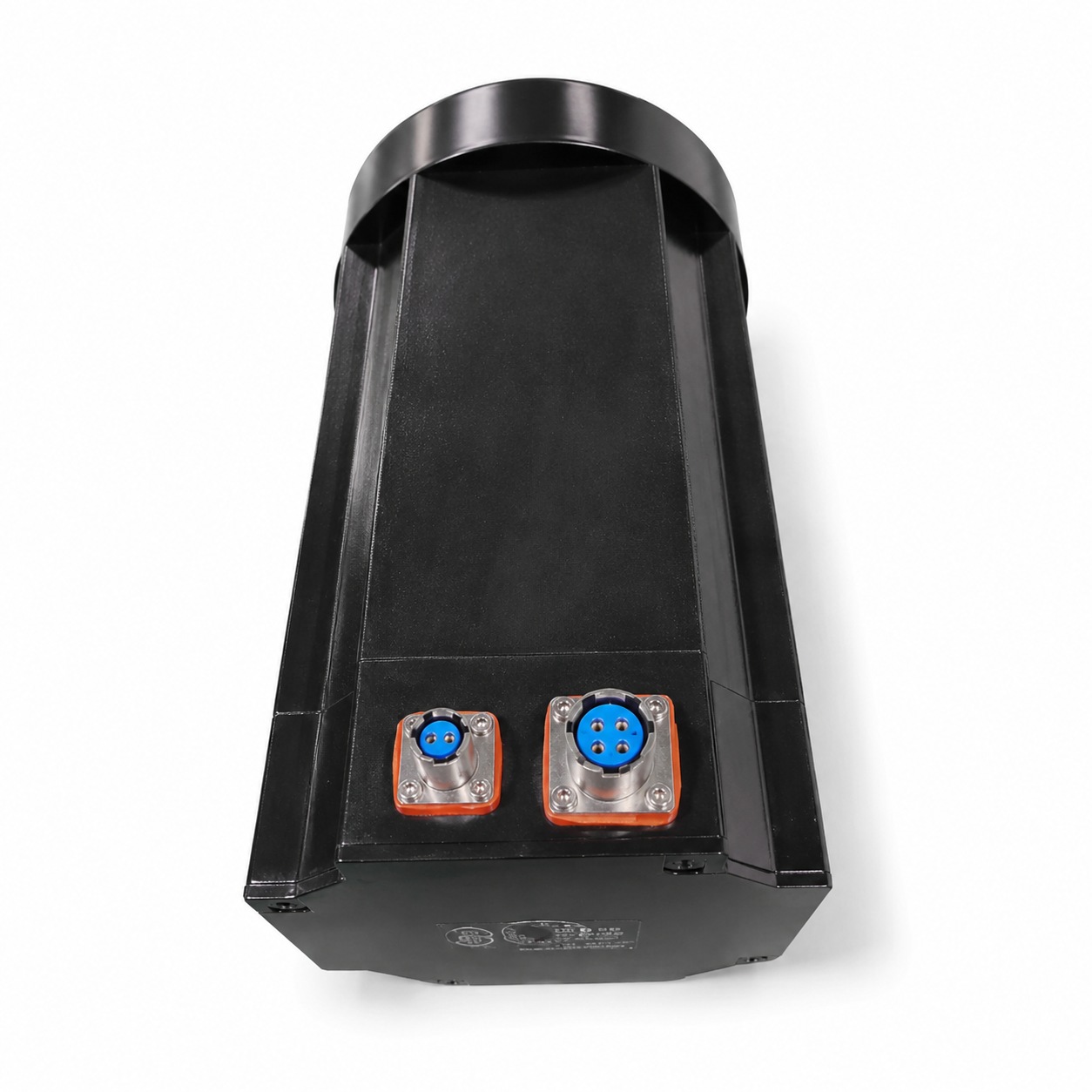

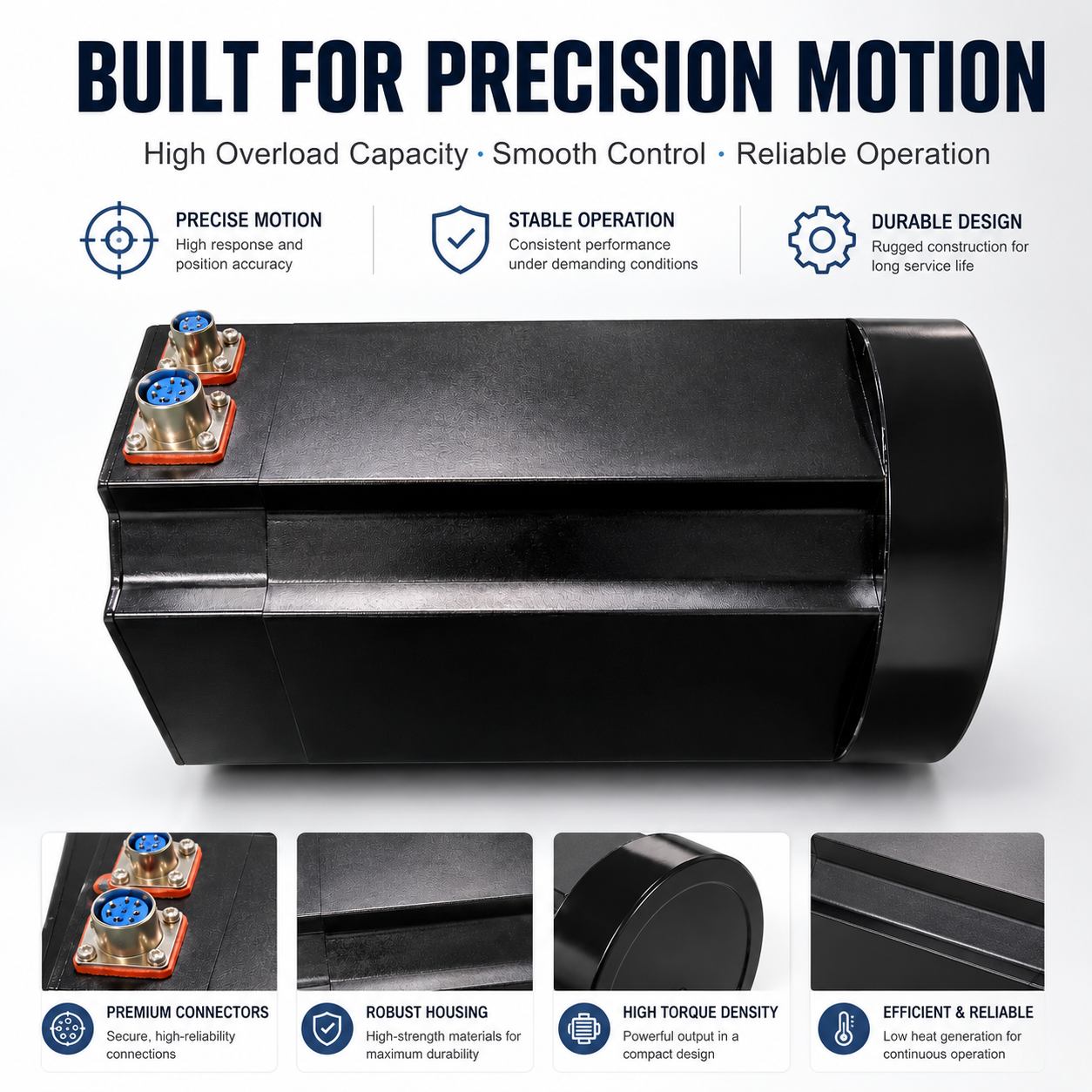

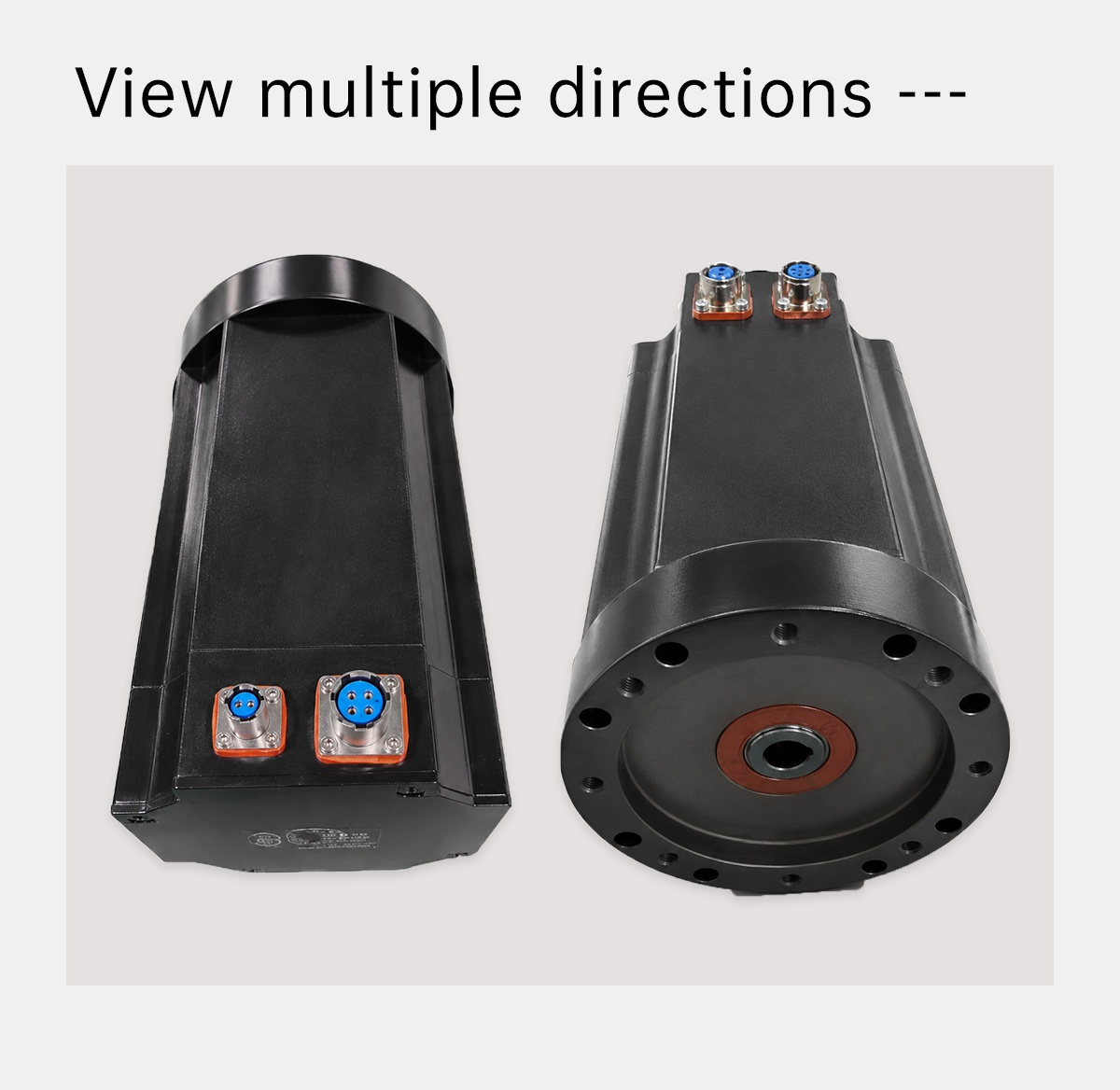

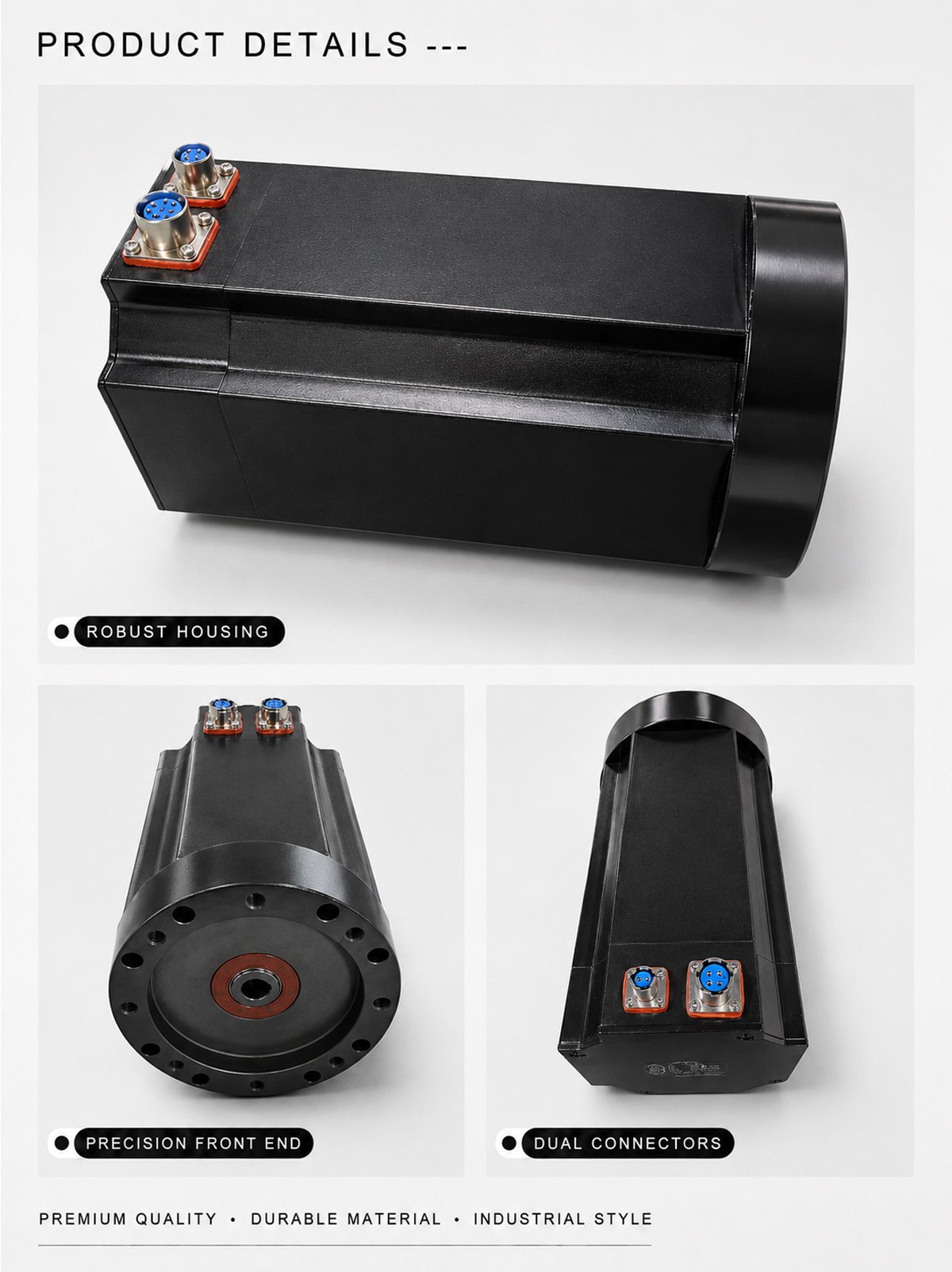

Permanent Magnet Servo Motor(CF-140ST-R25A)

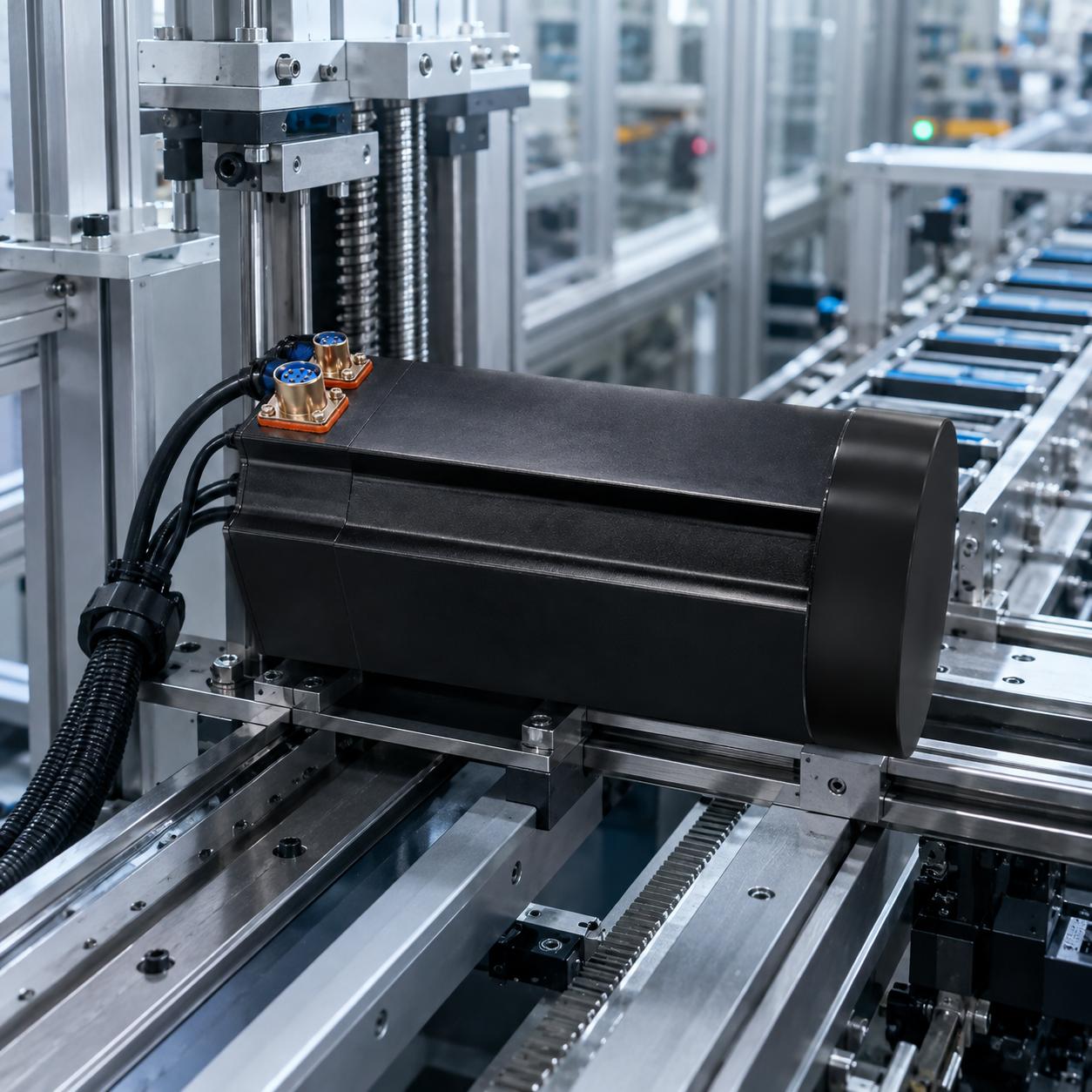

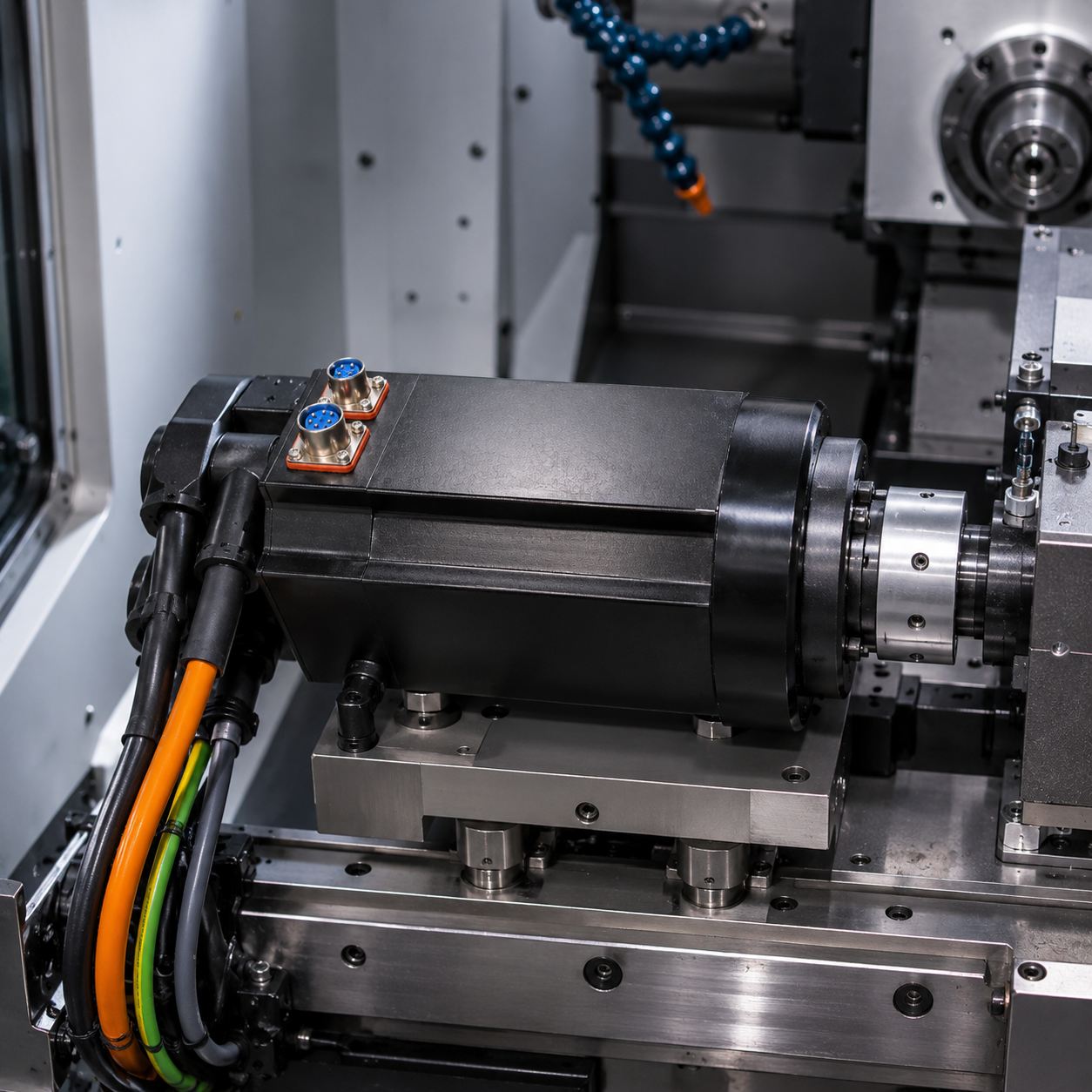

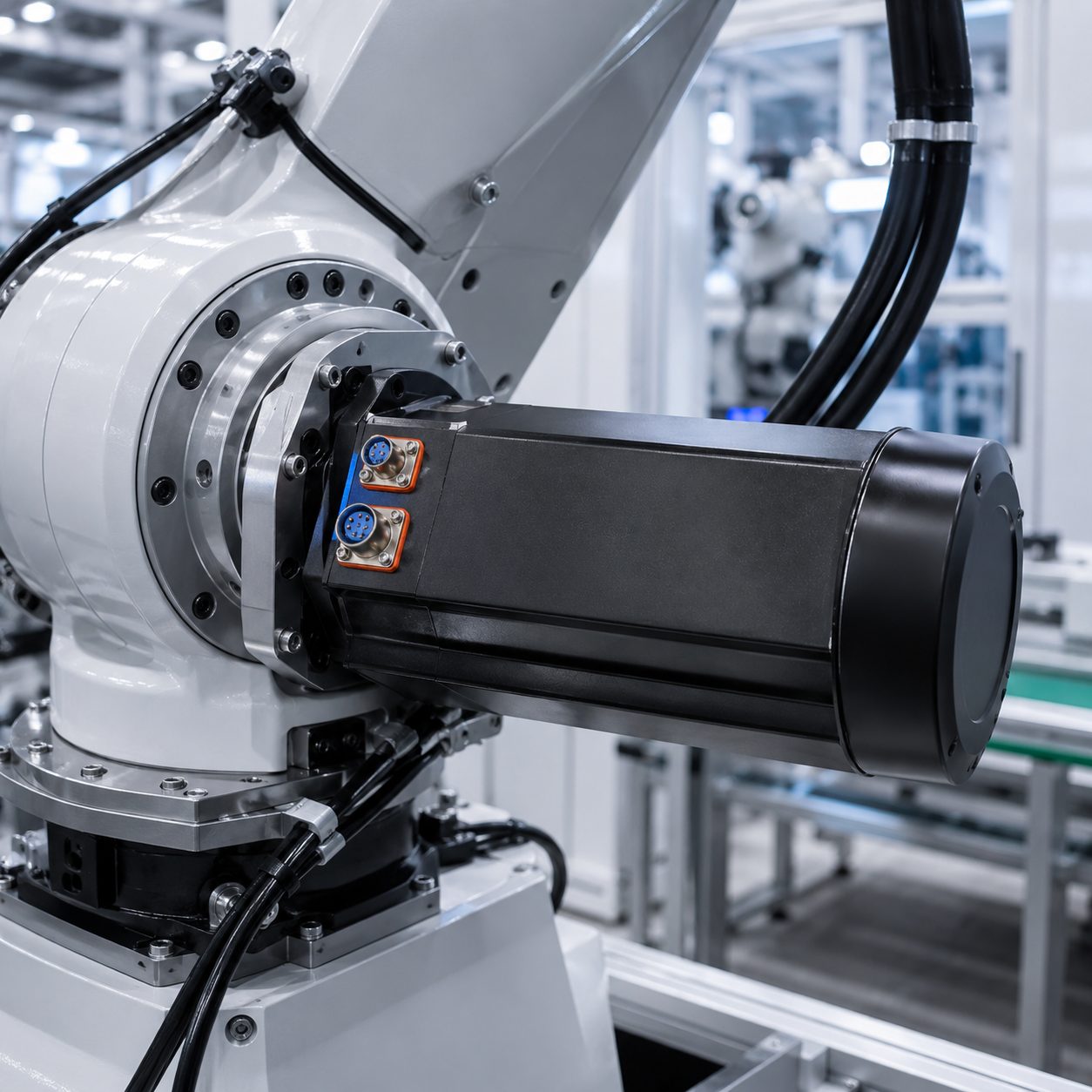

Cifu Technology’s series of permanent magnet servo motors serve as high-performance power cores designed specifically for industrial automation, precision drive systems, and intelligent manufacturing. Available in mainstream frame sizes such as 140mm and 180mm, these motors utilize high-energy-product permanent magnet materials and an optimized electromagnetic design, delivering high power density, superior overload capability, and exceptional dynamic response. They are widely used in high-precision control applications, including CNC machine tools, industrial robots, automated packaging equipment, printing machinery, lithium-ion battery manufacturing, and precision textile machinery.

Naming Convention:
1. Brand Prefix:
Code: CF-
Meaning: Cifu Technology
2. Frame Size and Motor Type:
Code Examples: 180ST / 140ST
Meaning: The number indicates the flange mounting dimension (e.g., 180 represents a 180mm flange); ST denotes a sine-wave permanent magnet synchronous servo motor.
3. Feedback/Encoder Type Code:
N: Optical encoder / Wire-saving encoder
R: Resolver
M: Magnetic encoder
4. Rated Speed ​​Code (in units of 100 RPM):
20: 2000 RPM
25: 2500 RPM
30: 3000 RPM
5. Operating Voltage Class Code:
A: 220 VAC (Single-phase/Three-phase)
B: 380 VAC
C: 110 VAC

📌 Please read here for more details on product specifications.

Description


Additional information

Motor Model

140ST-R8A7A

Motor Power

2.5 kW

Motor DC Bus Voltage

300 (240–350) VDC

Rated Speed

800 RPM

Maximum Speed

1100 RPM

Rated Torque (25°C)

30 N·m

Line Current

13 A

Peak Torque

75 N·m

Peak Current

42 A

Torque Constant (Stall) ±10%

2.43 N·m/A

Back-EMF Constant ±10%

155 V/kRPM

DC Resistance (25°Rotor InertiaC) ±10%

0.7 Ω

Rotor Inertia

0.0022 kg·m²

Weight

16.3 kg

Motor Pole Pairs

5 pairs

Resolver Pole Pairs

1 pair

Insulation Class

H

Motor Duty Cycle

S2-1h
